Google OAuth Setup ​

VideoSphere uses three separate Google OAuth clients in the same Google Cloud project:

ClientPurposeEnvironment variables
Google Sign-inLogin and signup with GoogleGOOGLE_CLIENT_ID, GOOGLE_CLIENT_SECRET
YouTube ConnectionUpload and manage videos on a connected YouTube channelYOUTUBE_CLIENT_ID, YOUTUBE_CLIENT_SECRET
Google Drive ConnectionBackup uploads to Google DriveGOOGLE_DRIVE_CLIENT_ID, GOOGLE_DRIVE_CLIENT_SECRET

Each client has its own callback URL. VideoSphere builds redirect URIs from NEXT_PUBLIC_APP_URL, so set that variable to the exact URL you use in the browser (including port) before creating OAuth clients.

bash
# Local development
NEXT_PUBLIC_APP_URL=http://localhost:9624

# Production example
NEXT_PUBLIC_APP_URL=https://videos.example.com

Email/password login works without Google OAuth. Create only the clients you need.

Part 1 — Enable APIs ​

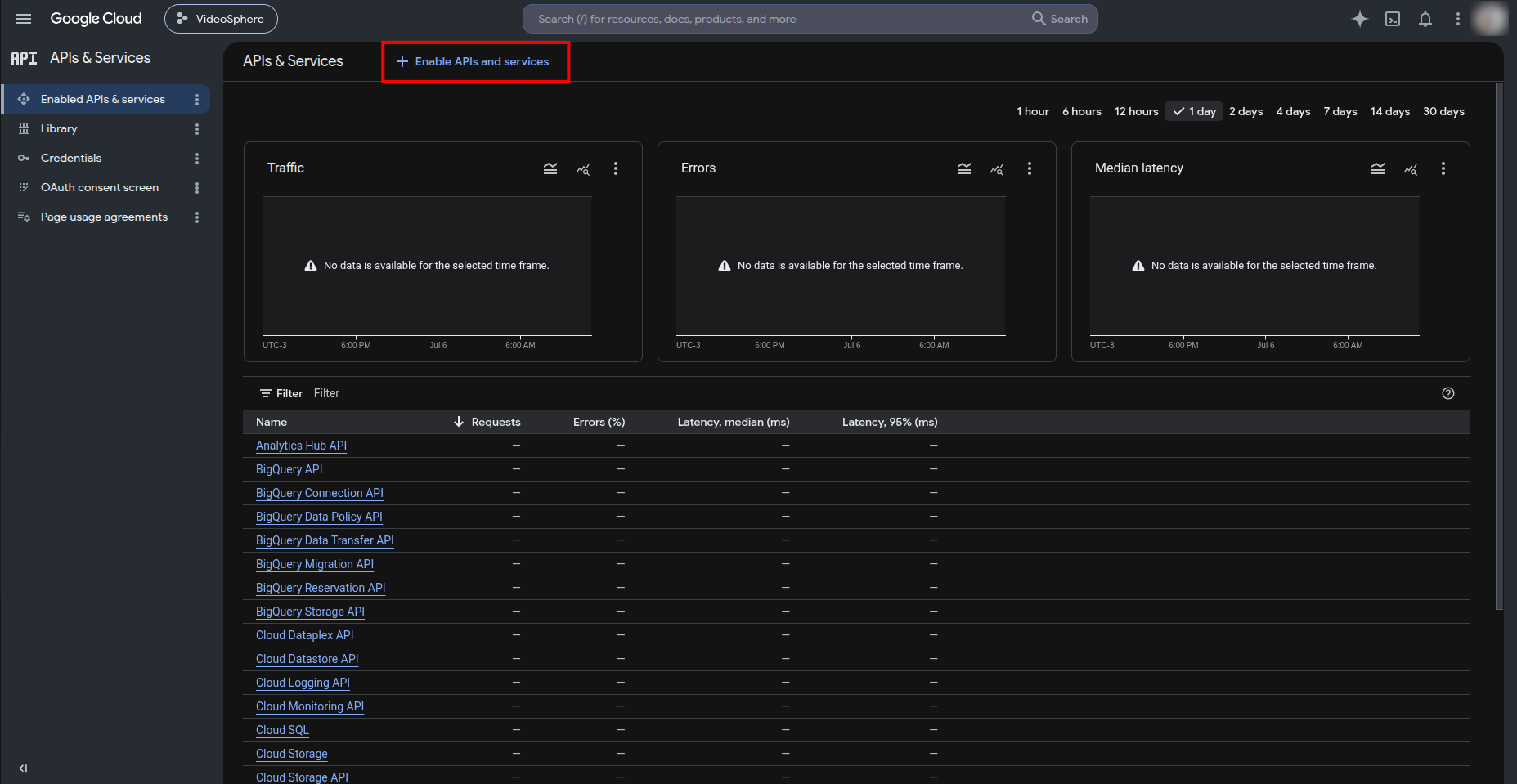

  1. Open Google Cloud Console and select your project (or create one). Go to APIs & Services → Enabled APIs & services, then click + Enable APIs and services. Enable APIs and services

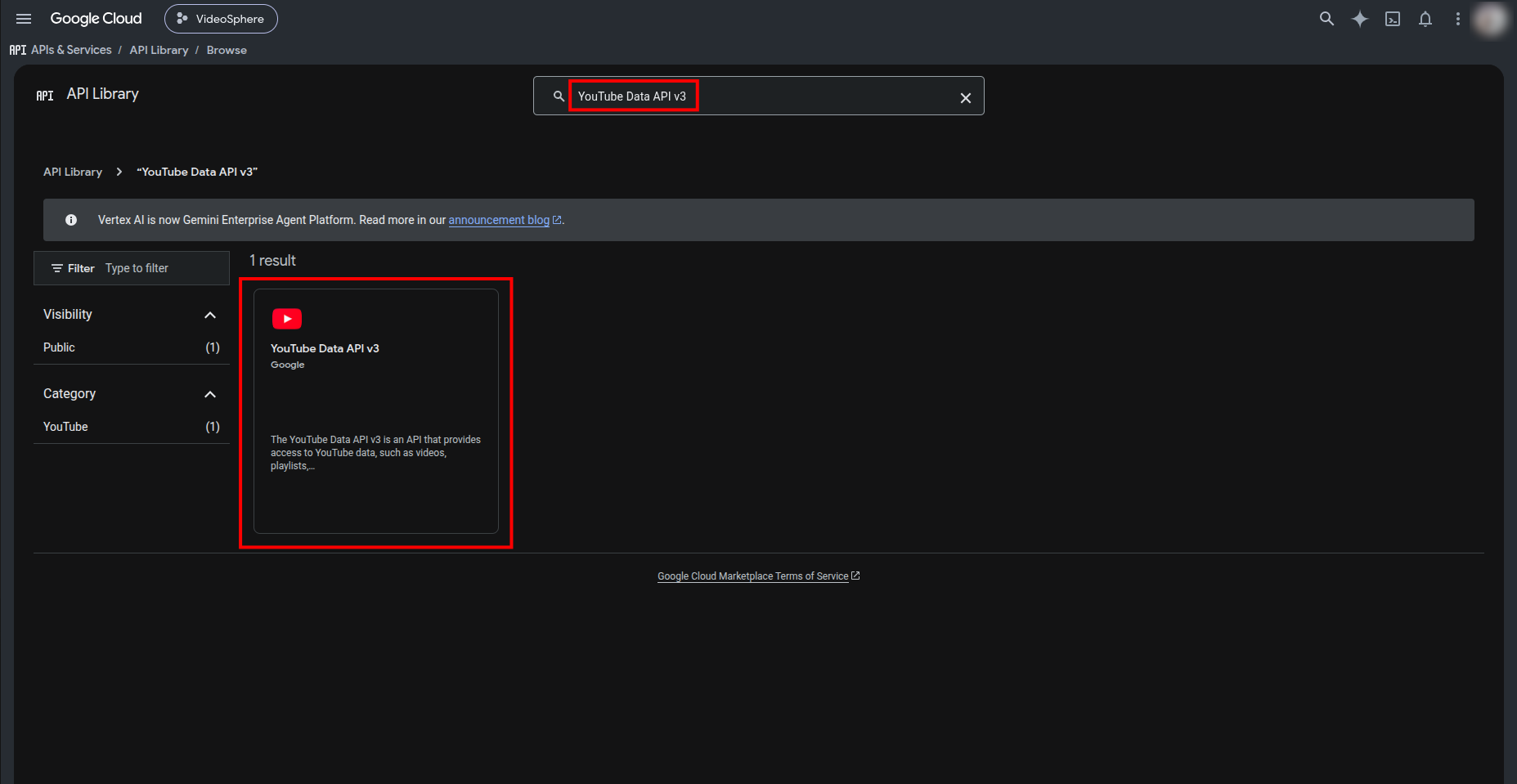

  2. Search for YouTube Data API v3 and open it. Search YouTube Data API v3

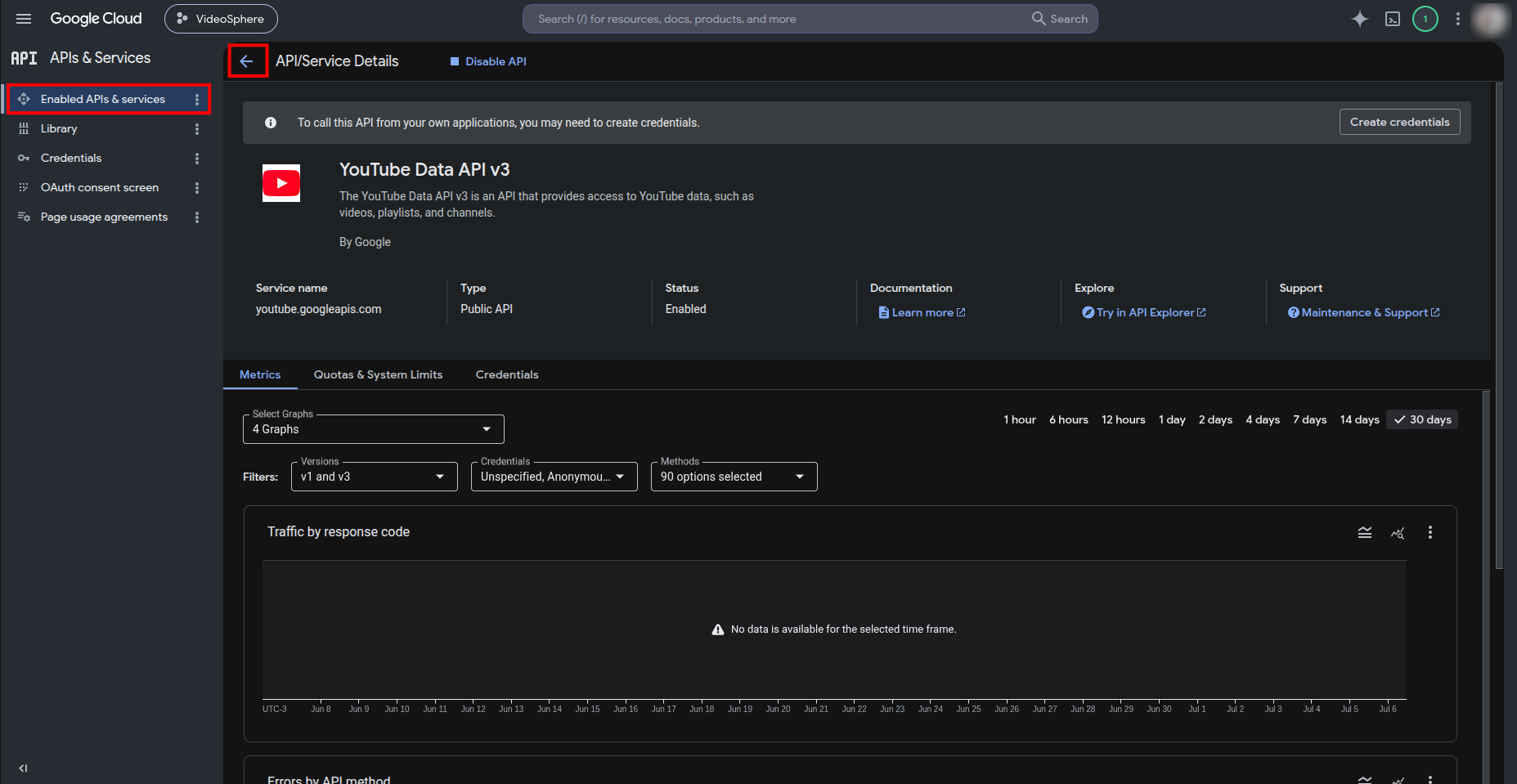

  3. Click Enable if the API is not already enabled. When status shows Enabled, return to the API library. YouTube Data API v3 enabled

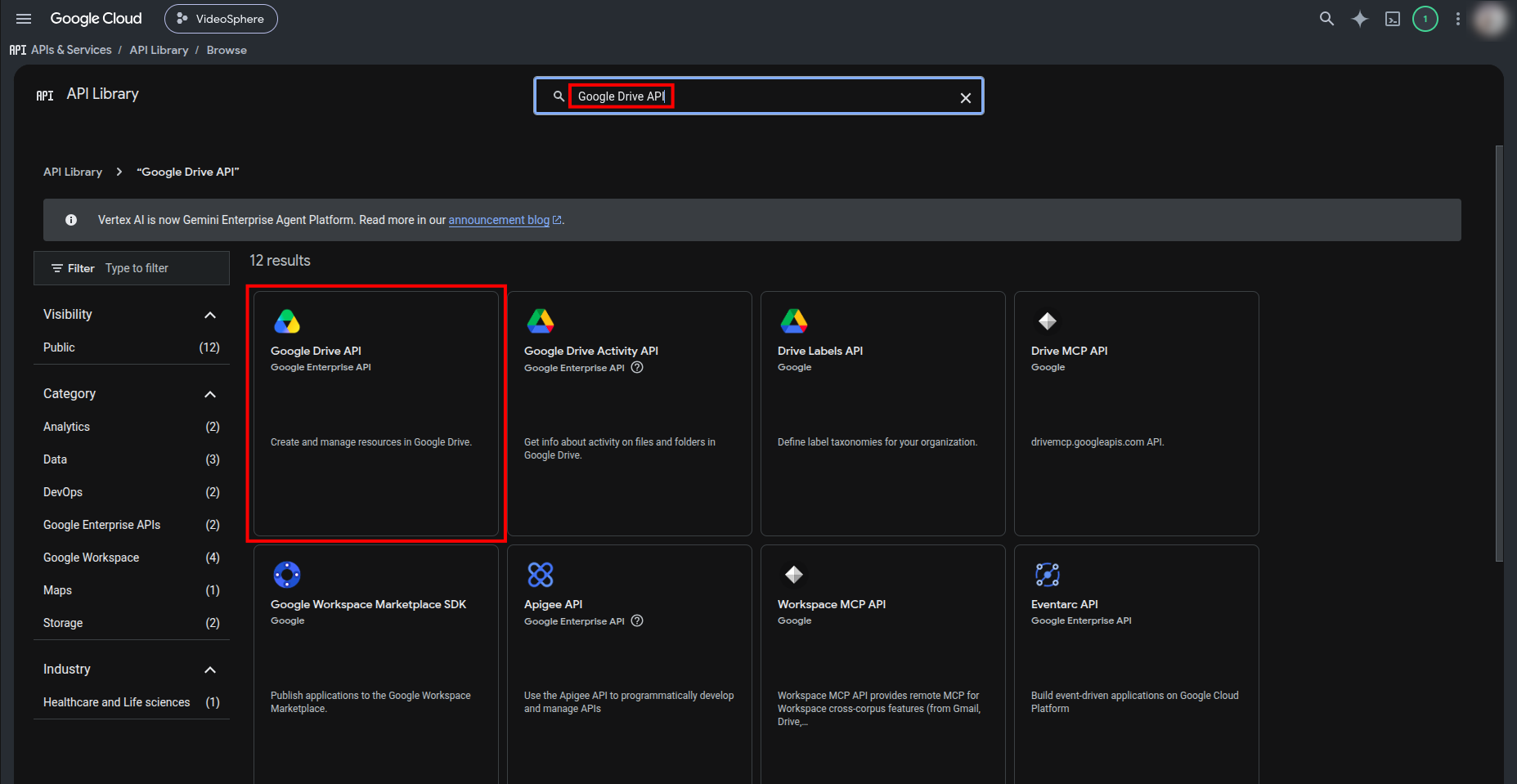

  4. Search for Google Drive API and open it. Search Google Drive API

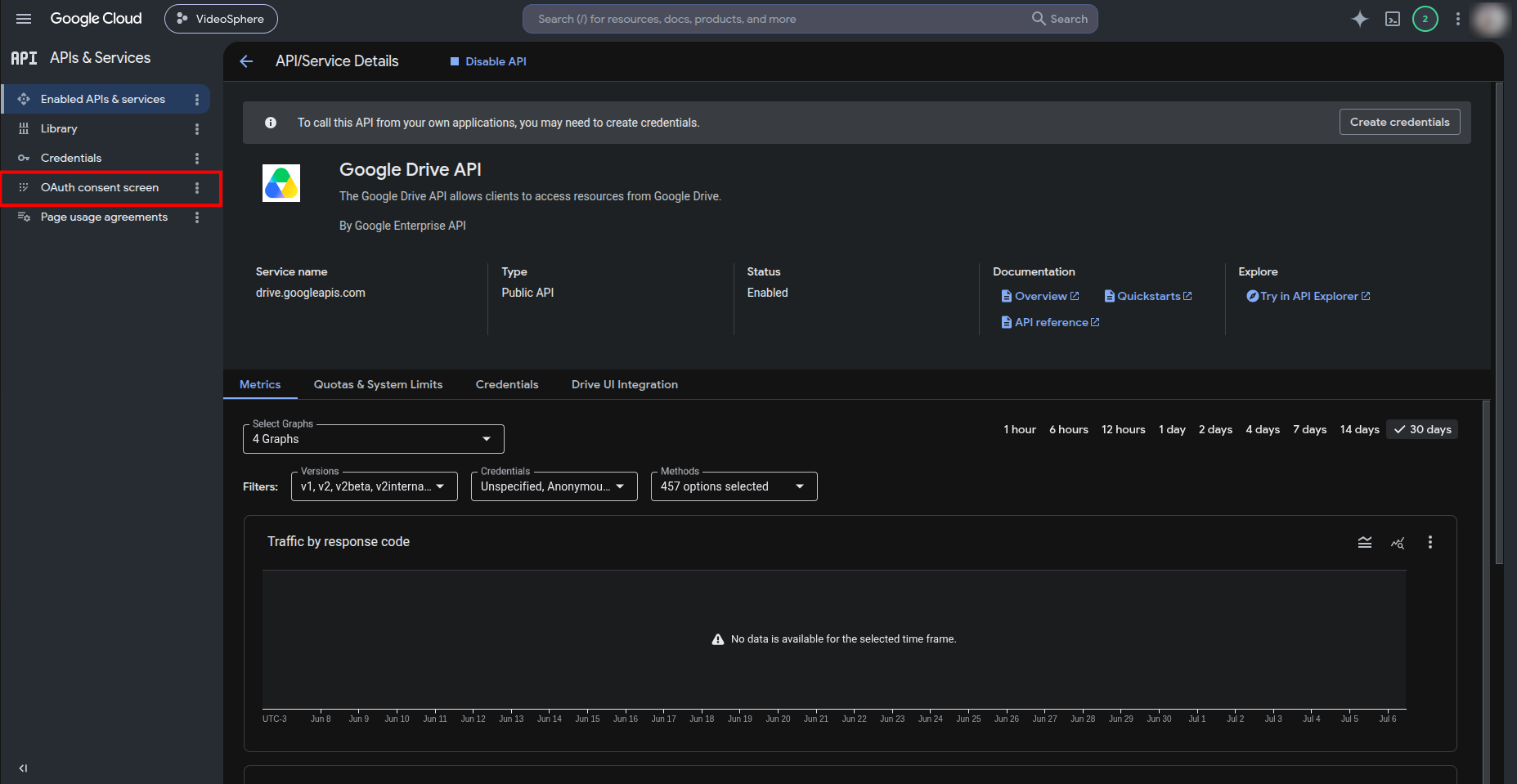

  5. Click Enable if needed. When status shows Enabled, open Google Auth Platform → OAuth consent screen in the left sidebar (or APIs & Services → OAuth consent screen in the classic menu). Google Drive API enabled

These steps configure the consent screen shared by all three OAuth clients.

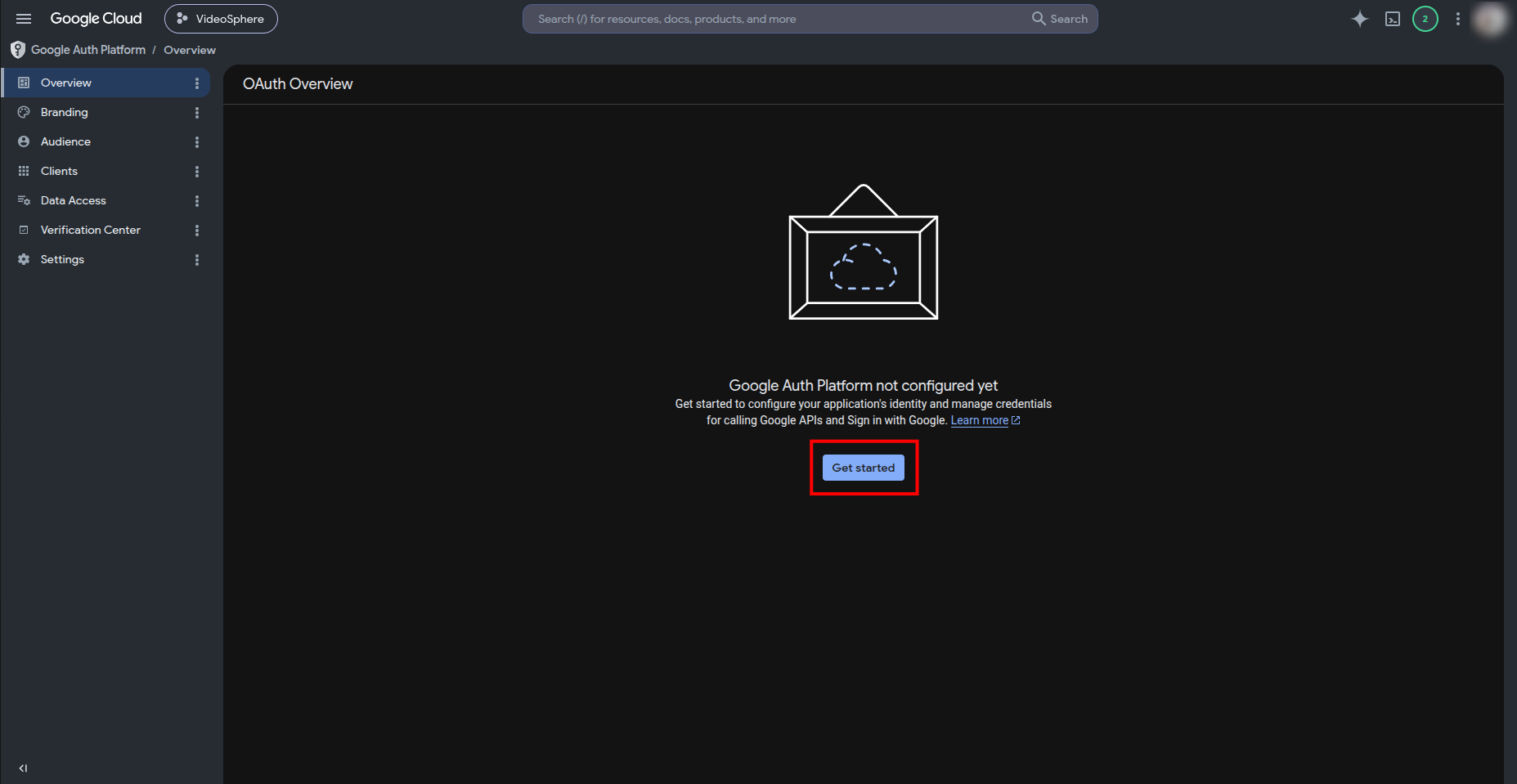

  1. On the OAuth Overview page, click Get started. OAuth Overview — Get started

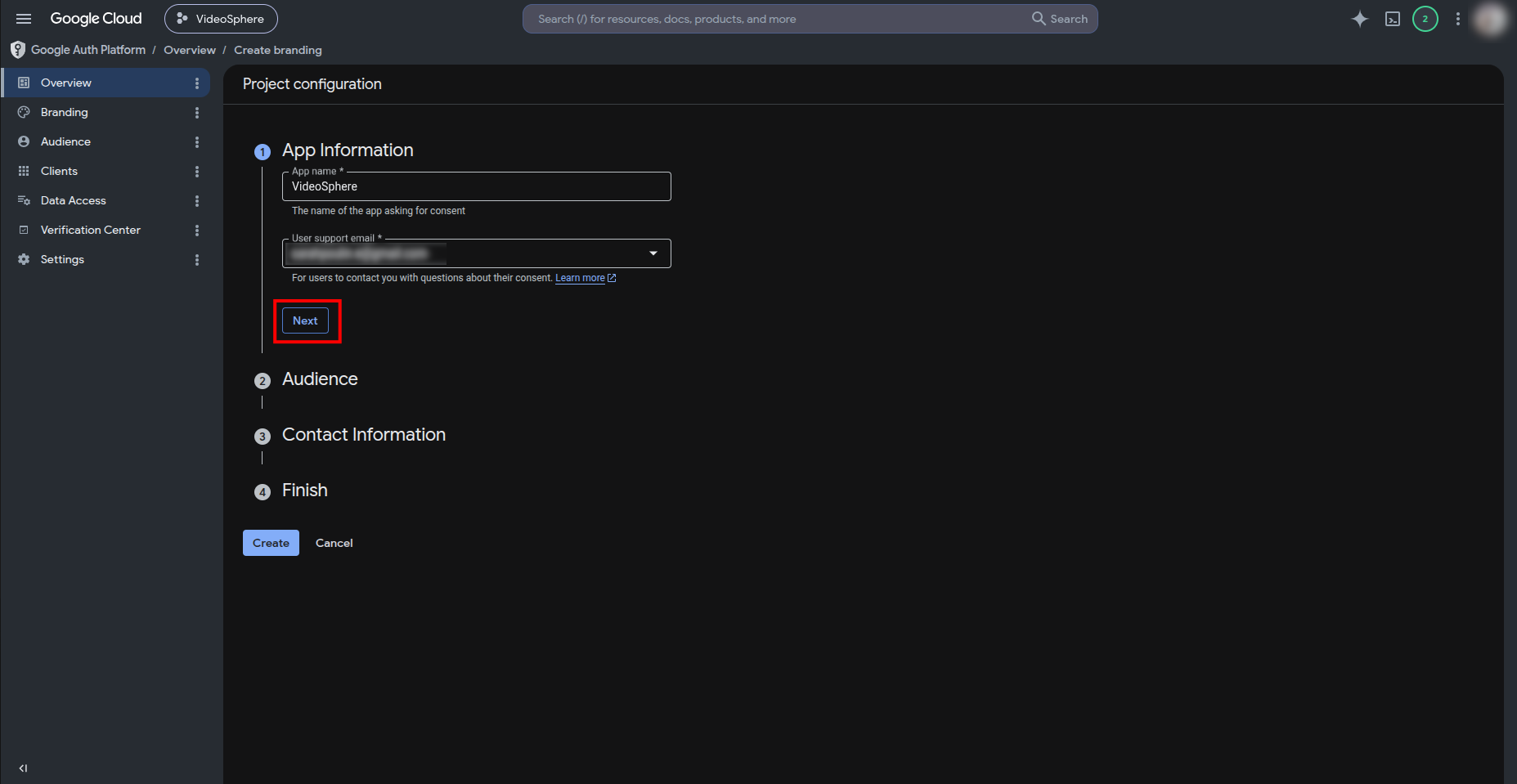

  2. App Information — enter an app name (e.g. VideoSphere) and a support email. Click Next. App Information

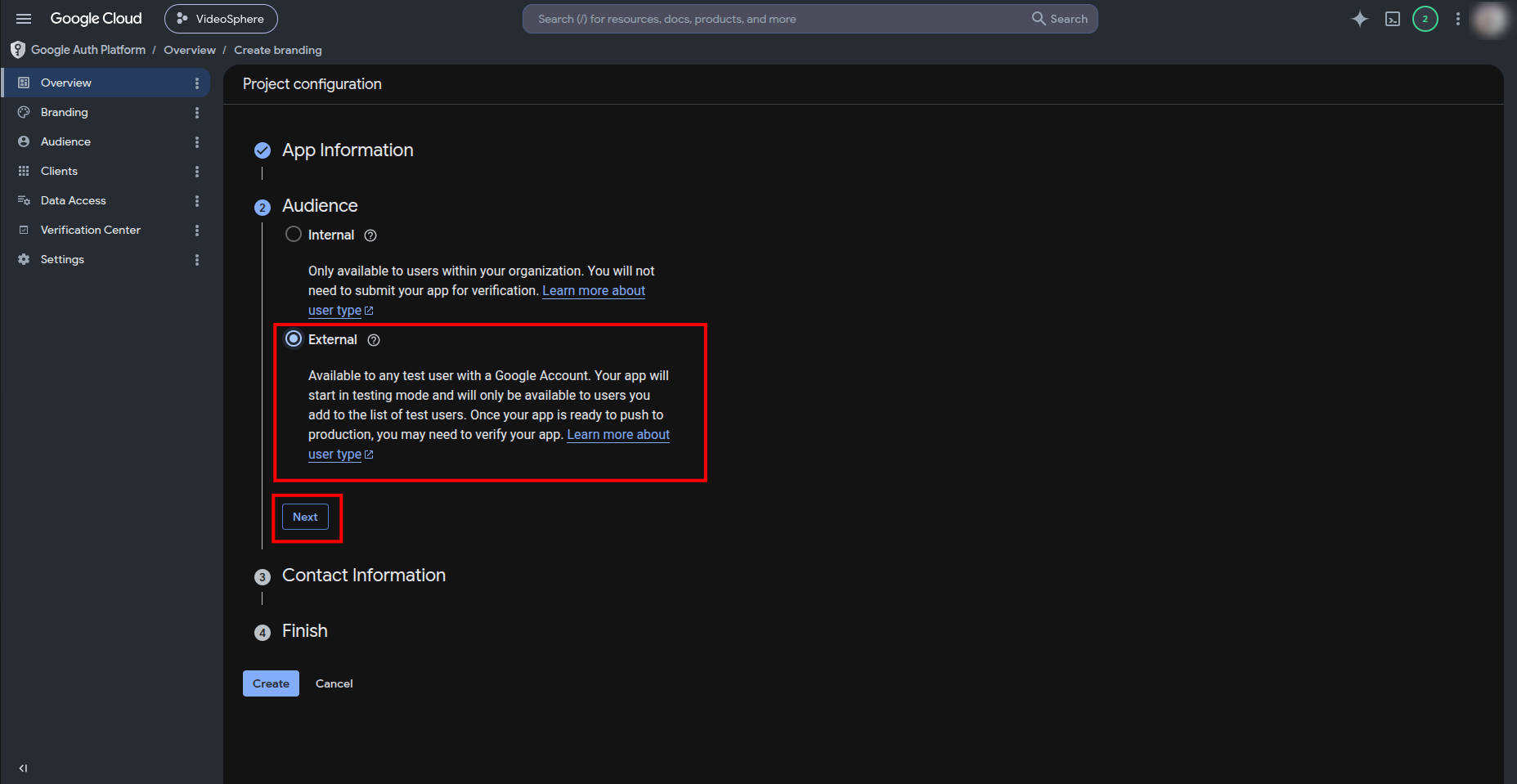

  3. Audience — choose External for personal or homelab use (Google Workspace internal apps can choose Internal). Click Next. Audience — External

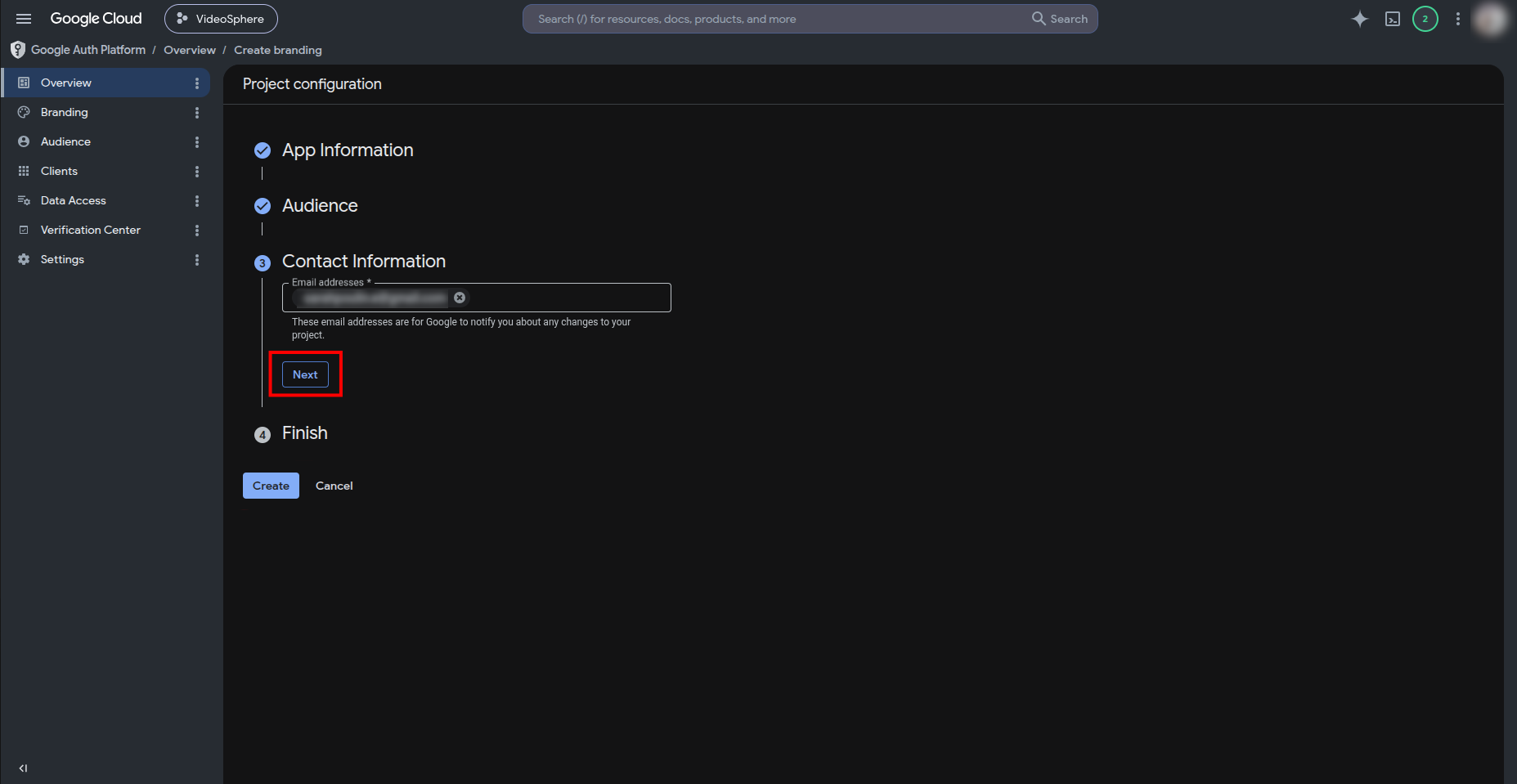

  4. Contact Information — add a developer contact email. Click Next. Contact Information

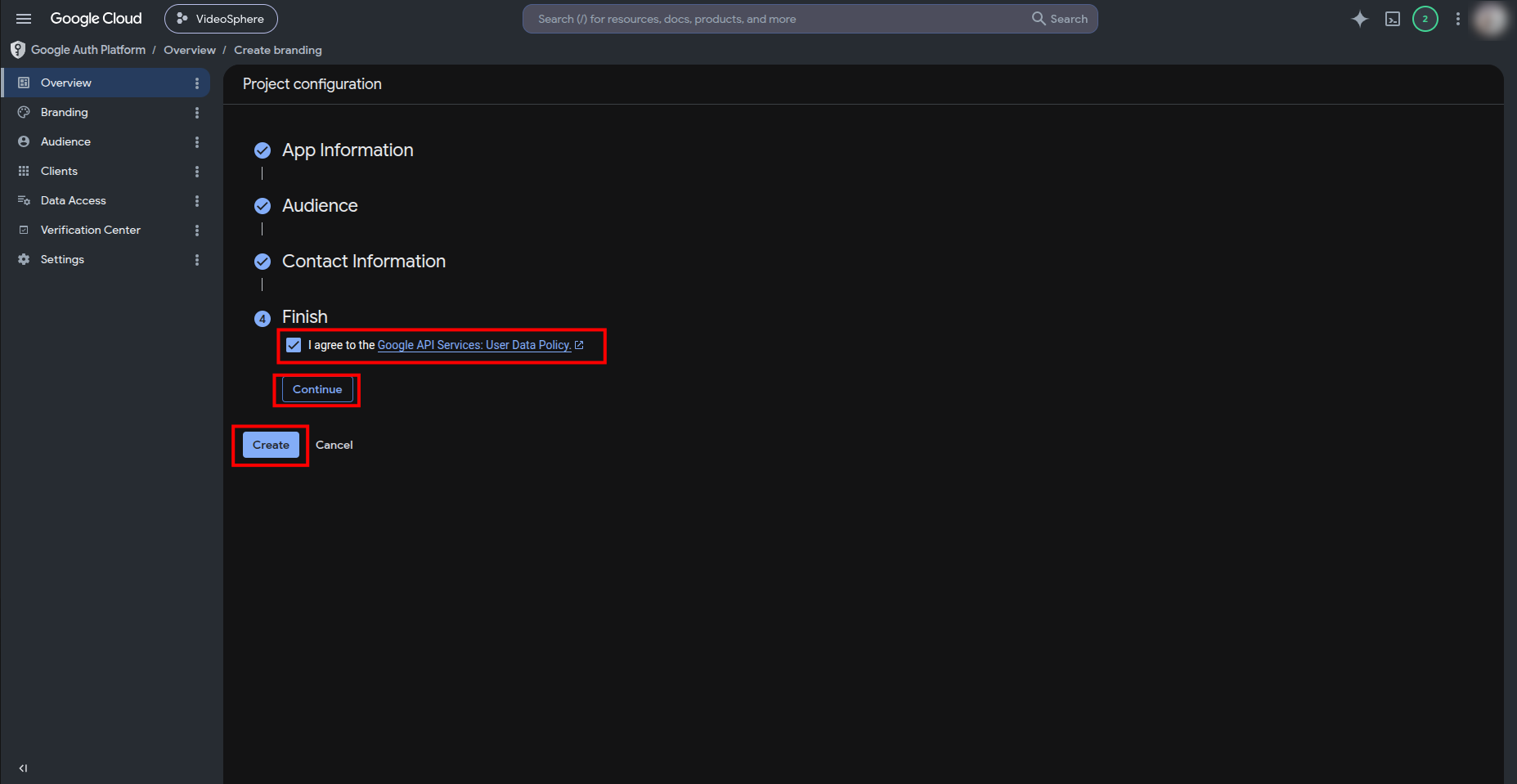

  5. Finish — review the summary, accept the Google API Services policy, then click Continue and Create. Finish and create

Part 3 — Data Access (scopes) ​

Platform connections need explicit scopes on the consent screen. Sign-in uses standard OpenID scopes (openid, email, profile) and does not require extra entries here.

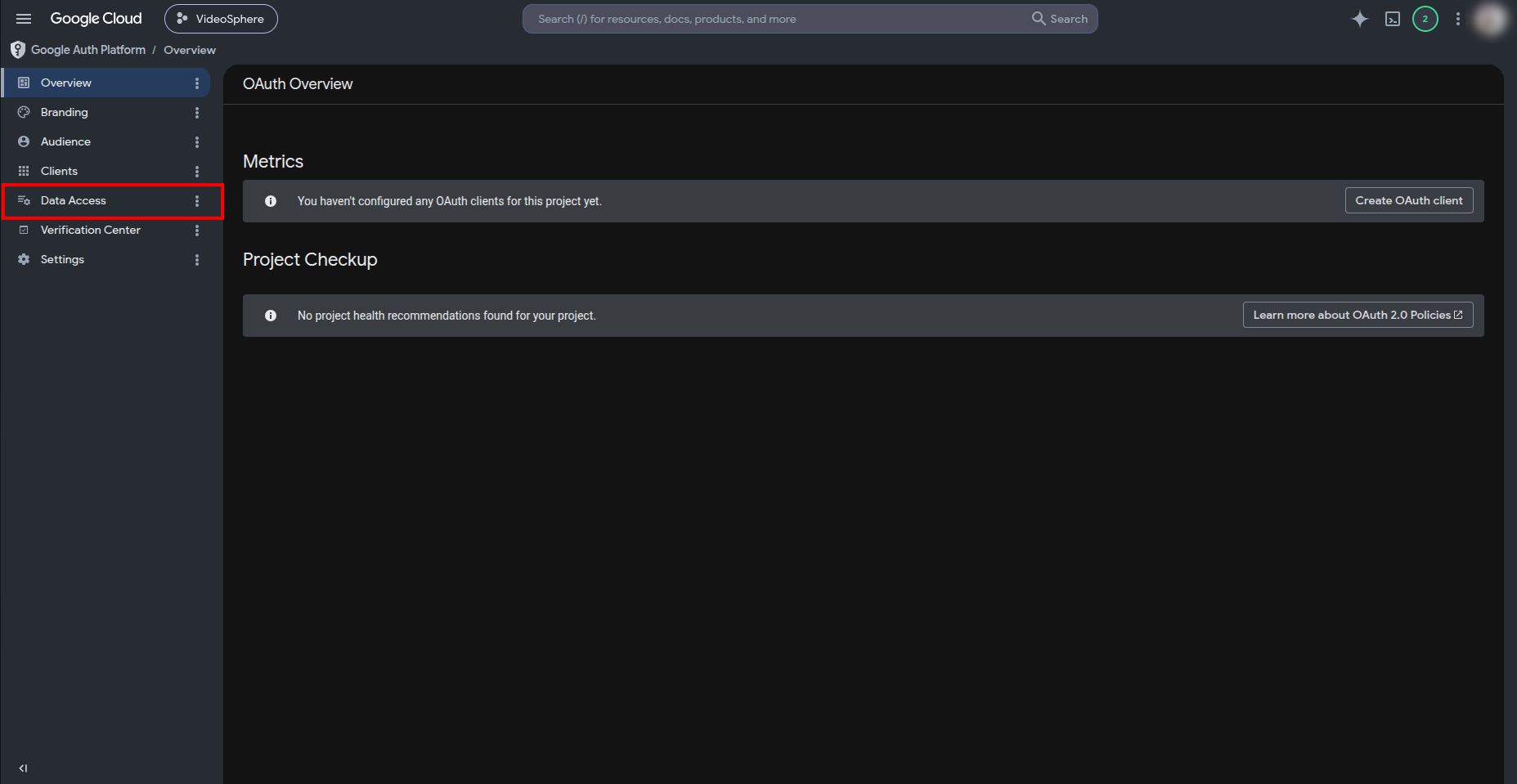

  1. From OAuth Overview, open Data Access (left sidebar). OAuth Overview — Data Access

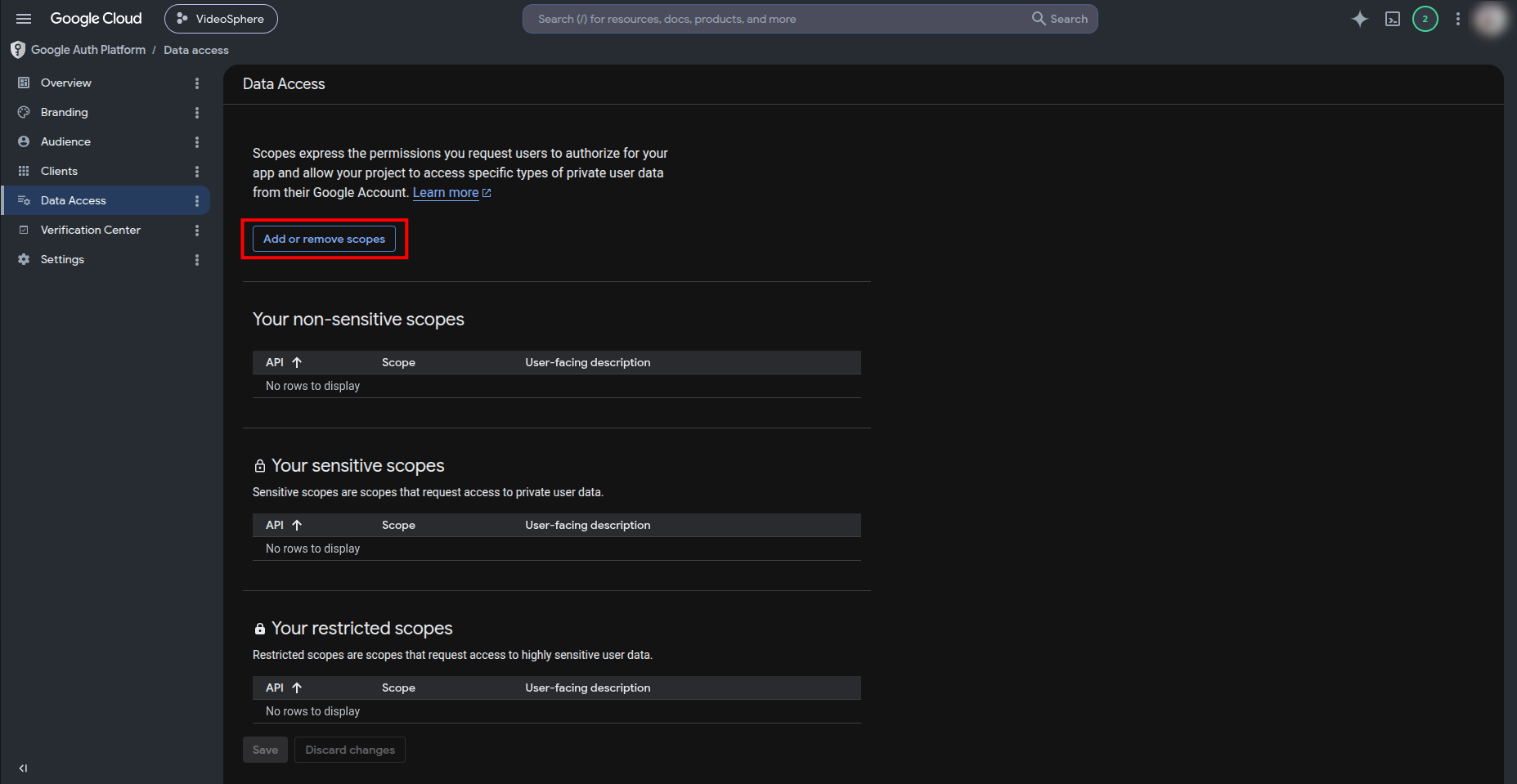

  2. Click Add or remove scopes. Data Access — Add or remove scopes

YouTube scopes ​

Add each scope below. In the scope picker, filter by /auth/youtube to find them quickly.

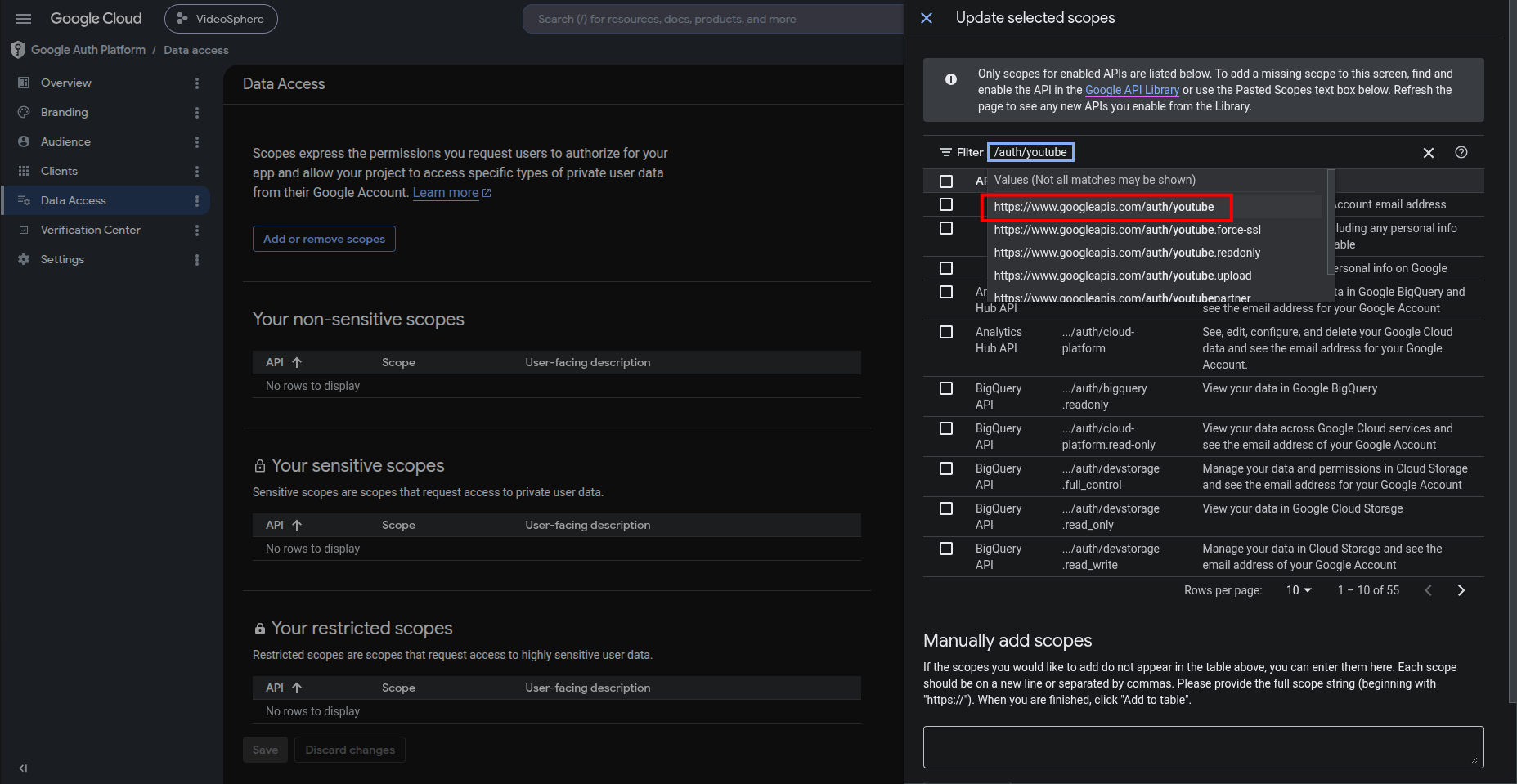

  1. Select Manage your YouTube account (.../auth/youtube). Add scope — youtube

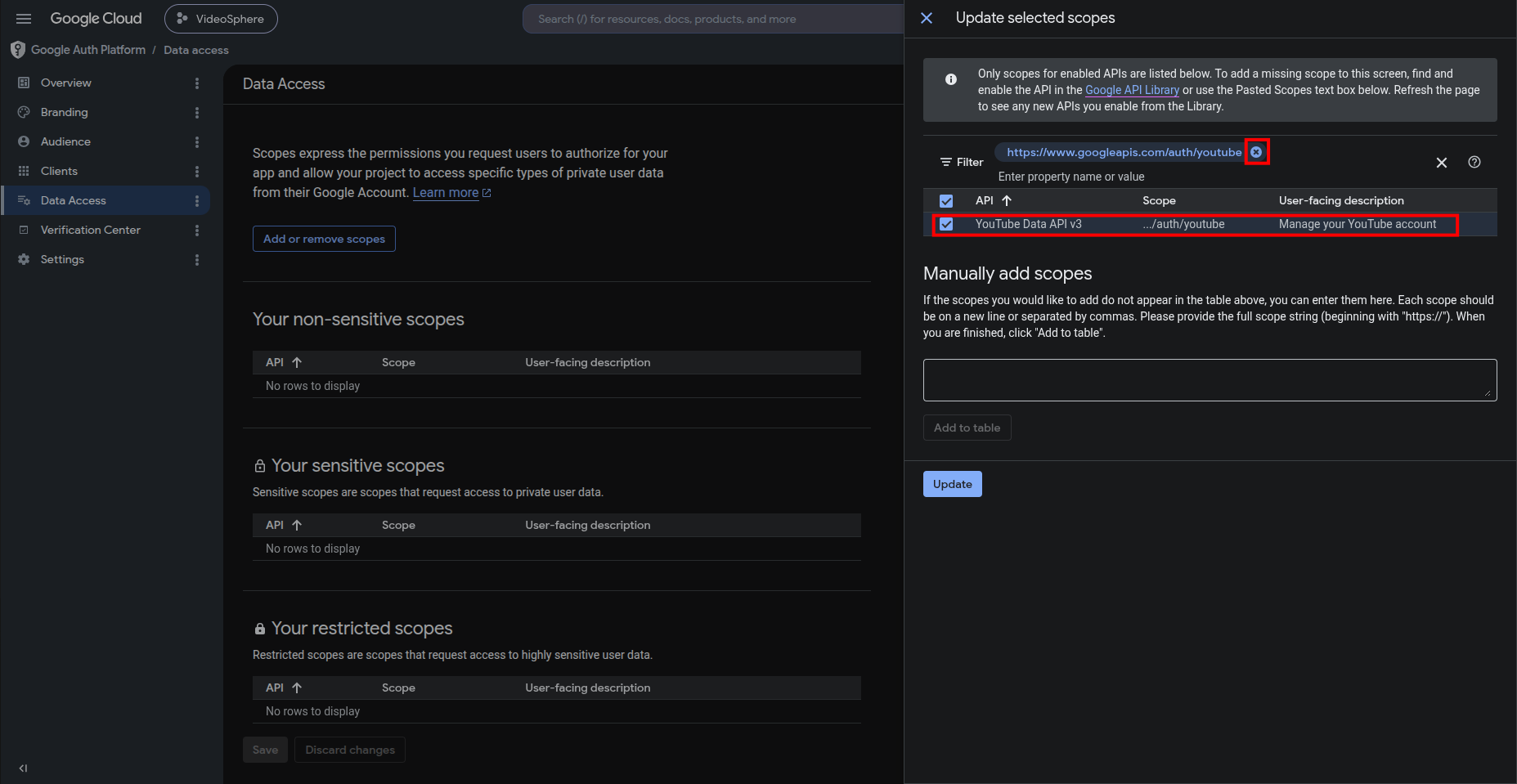

  2. Check Manage your YouTube account and then click on the small x to clear the filter. Add scope and clear filter

  3. Select See, edit, and permanently delete your YouTube videos, ratings, comments and captions (.../auth/youtube.force-ssl), check it, and clear the filter. Add scope — youtube.upload

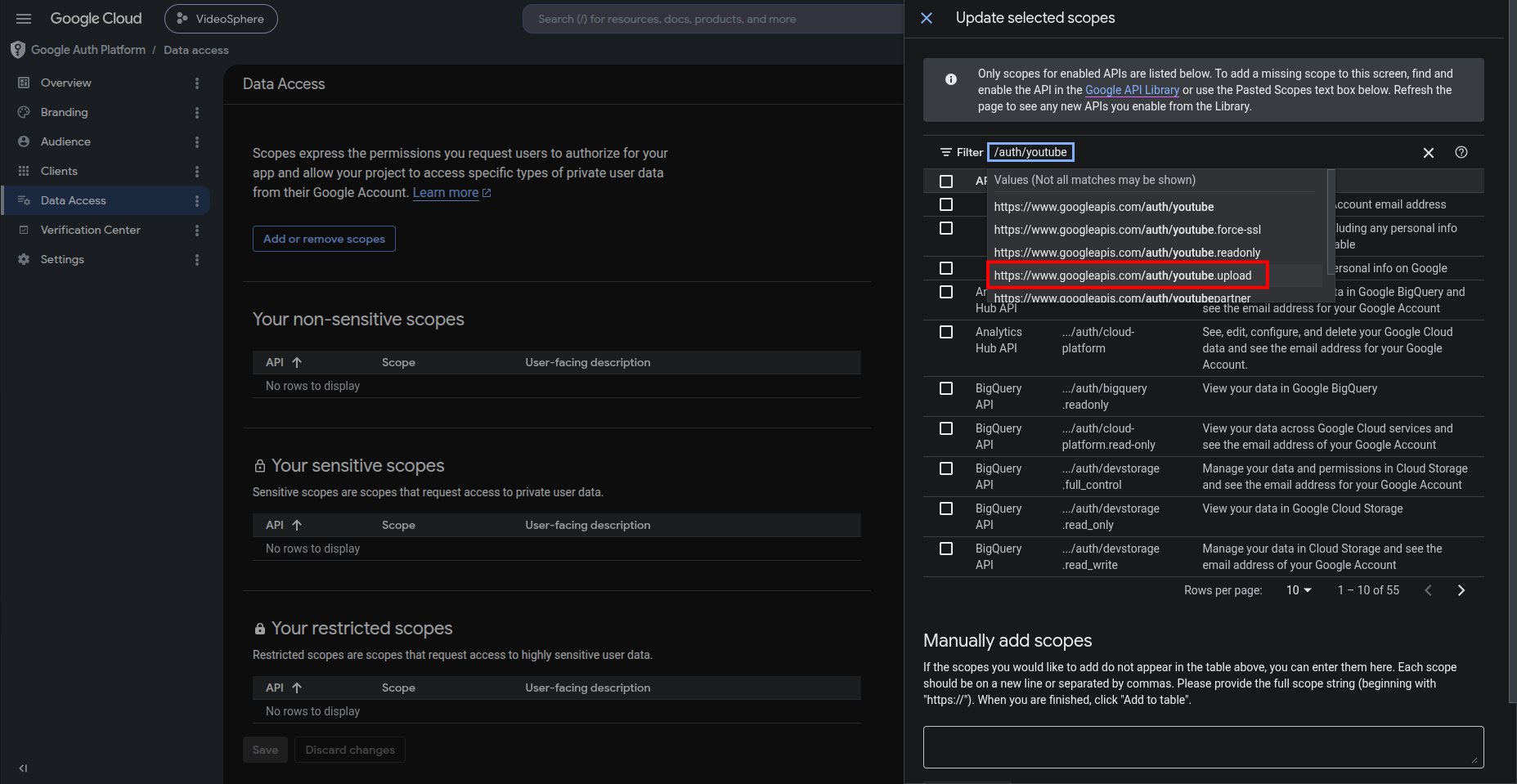

  4. Select Manage your YouTube videos (.../auth/youtube.upload), check it, and clear the filter. Add scope — youtube.readonly

  5. Select View your YouTube account (.../auth/youtube.readonly), check it, then click Update. Selected YouTube scopes

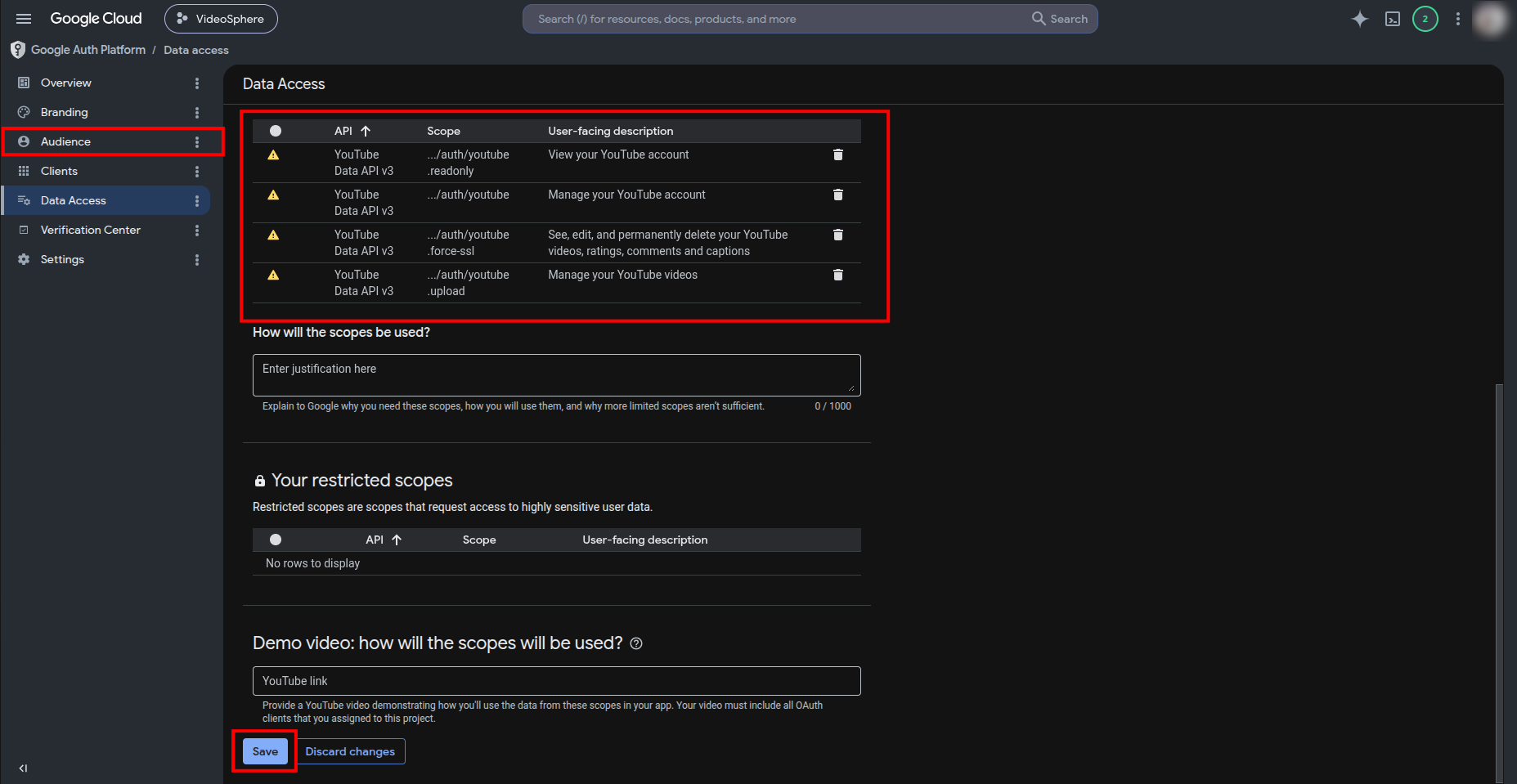

  6. Confirm all four scopes are there, then click Save, and head to Audience. Scope justification and Save

Part 4 — Publishing the App ​

If the app stays as Testing, only accounts listed as test users can complete OAuth, and manual reconnection must happen roughly on a weekly basis. Publish app is the solution, and verification is optional. The user, when connecting with OAuth, will see a warning that the app is not verified.

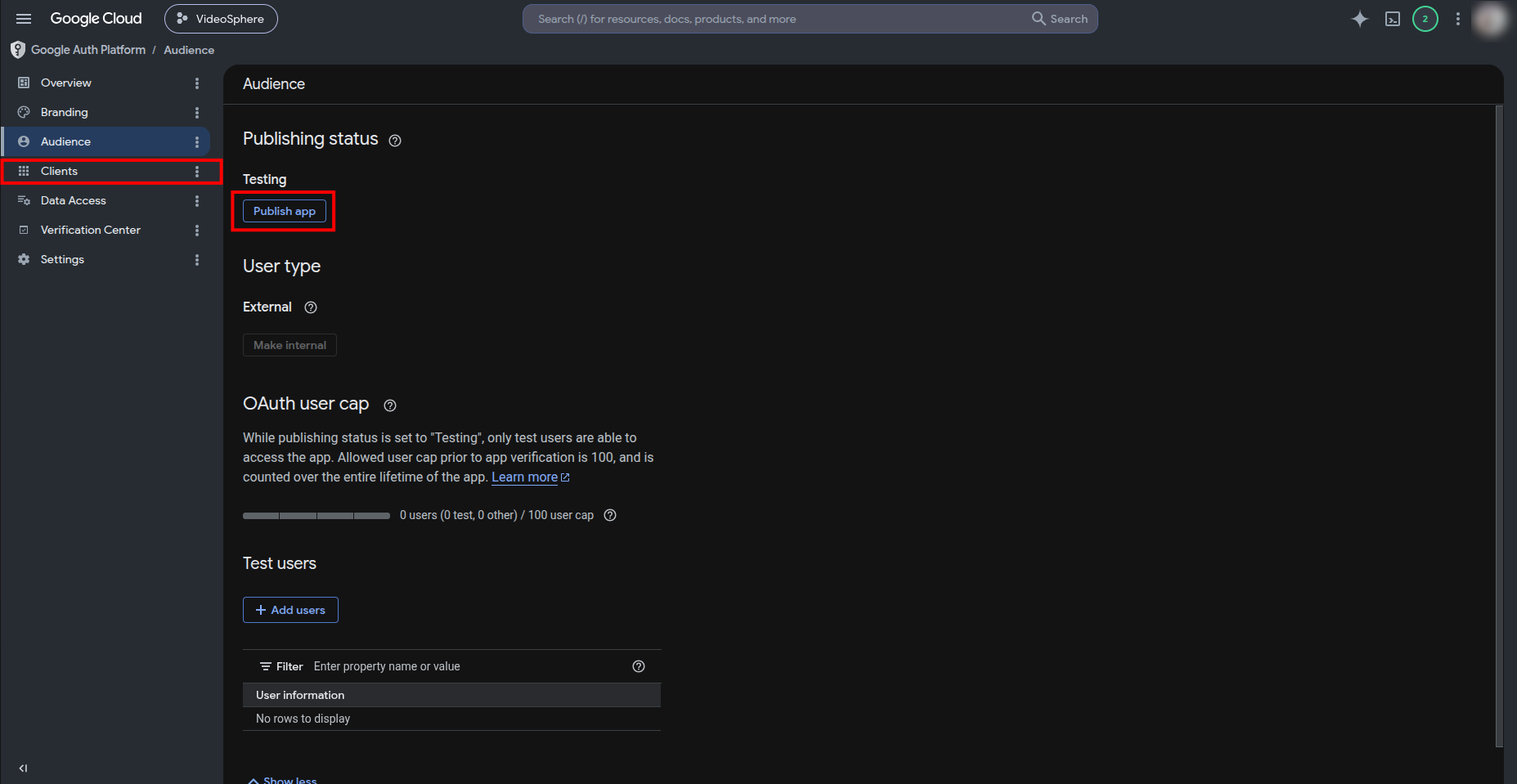

  1. In Audience, under Testing, click Publish app. When finished, go to Clients to create OAuth credentials. Audience — test users and Clients

Part 5 — Create OAuth clients ​

Create three clients. Use Web application as the application type for each. Store credentials in the same place as your other VideoSphere secrets: .env.local for local dev or Docker Compose, or Environment variables on a Portainer stack (see Deployment Guide).

Google Sign-in client ​

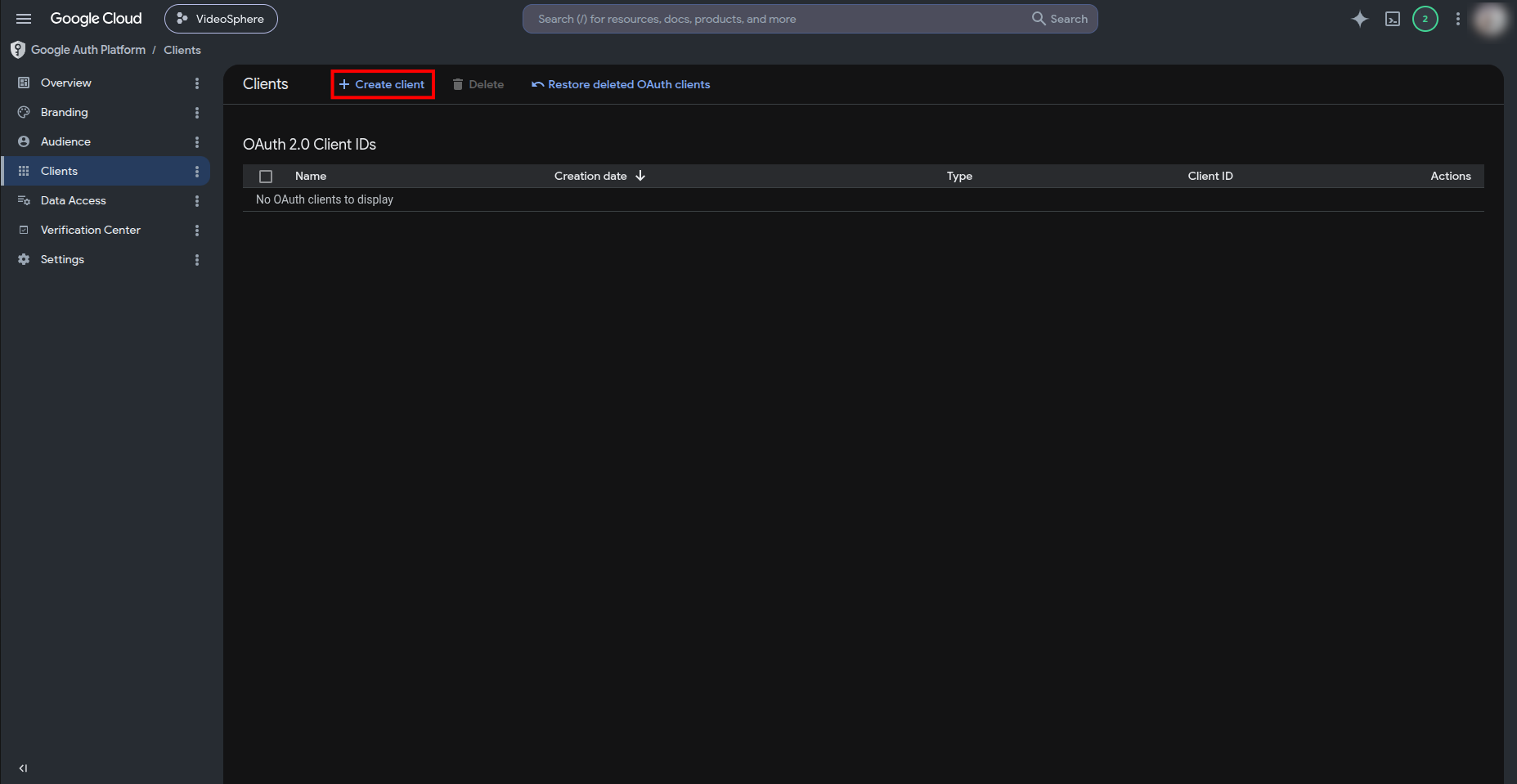

  1. On Clients, click + Create client. Clients — Create client

  2. Configure the client:

  • Name: Google Sign-in (or similar)
  • Authorized JavaScript origins: leave empty unless you add a separate web origin later
  • Authorized redirect URIs — add the production URL, and optionally the local URL:
    • http://localhost:9624/api/auth/oauth/callback
    • https://your-domain.com/api/auth/oauth/callback (replace with your real host)

Click Create. Google Sign-in client

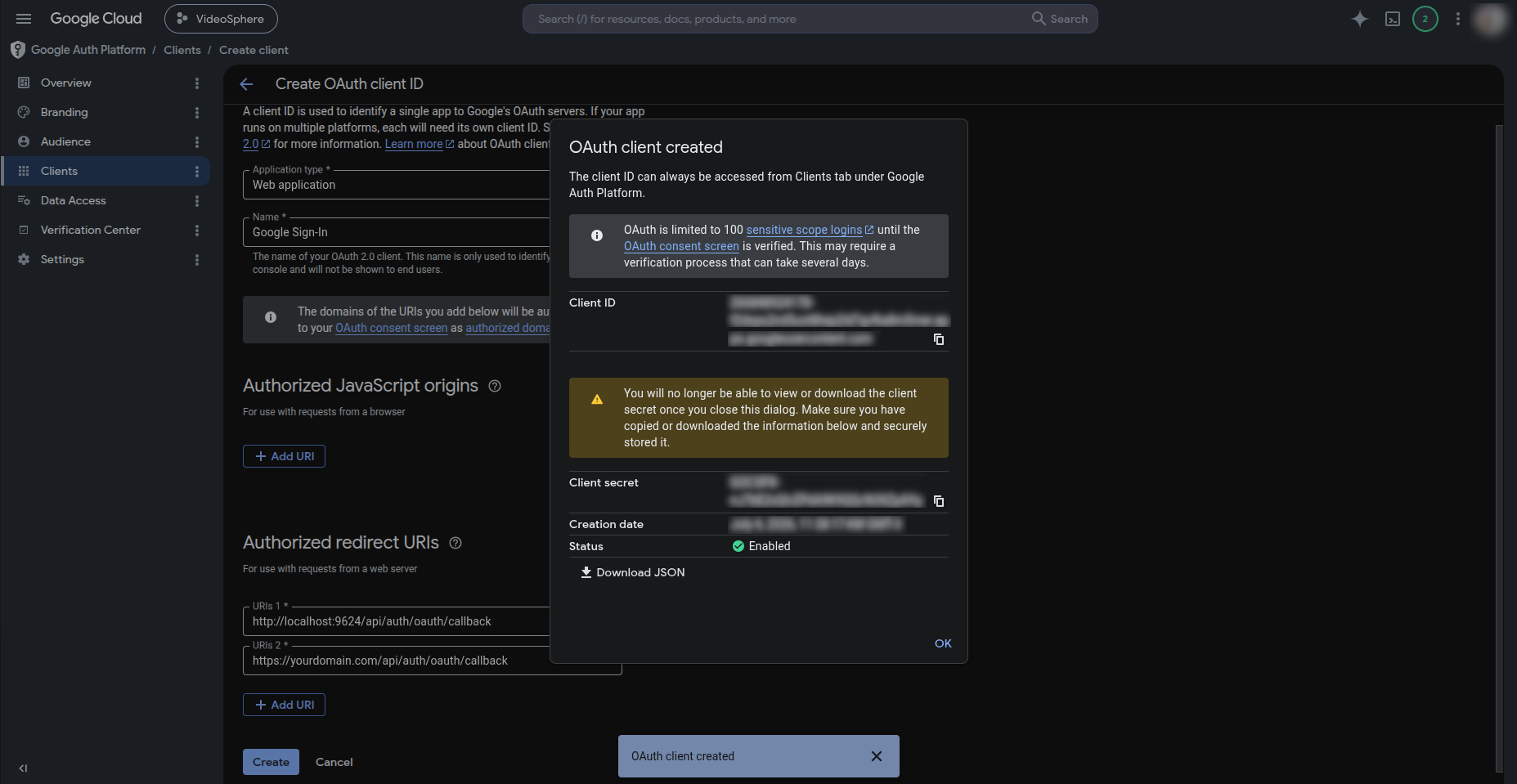

  1. Copy the Client ID and Client secret into .env.local (local pnpm dev or Docker Compose with --env-file .env.local), or into your Portainer stack Environment variables:
bash
GOOGLE_CLIENT_ID=your-google-sign-in-client-id
GOOGLE_CLIENT_SECRET=your-google-sign-in-client-secret

OAuth client created — copy credentials

YouTube Connection client ​

  1. Click + Create client again:
  • Name: YouTube Connection
  • Authorized redirect URIs:
    • http://localhost:9624/api/platforms/callback/youtube
    • https://your-domain.com/api/platforms/callback/youtube
bash
YOUTUBE_CLIENT_ID=your-youtube-client-id
YOUTUBE_CLIENT_SECRET=your-youtube-client-secret

YouTube Connection client

Google Drive Connection client ​

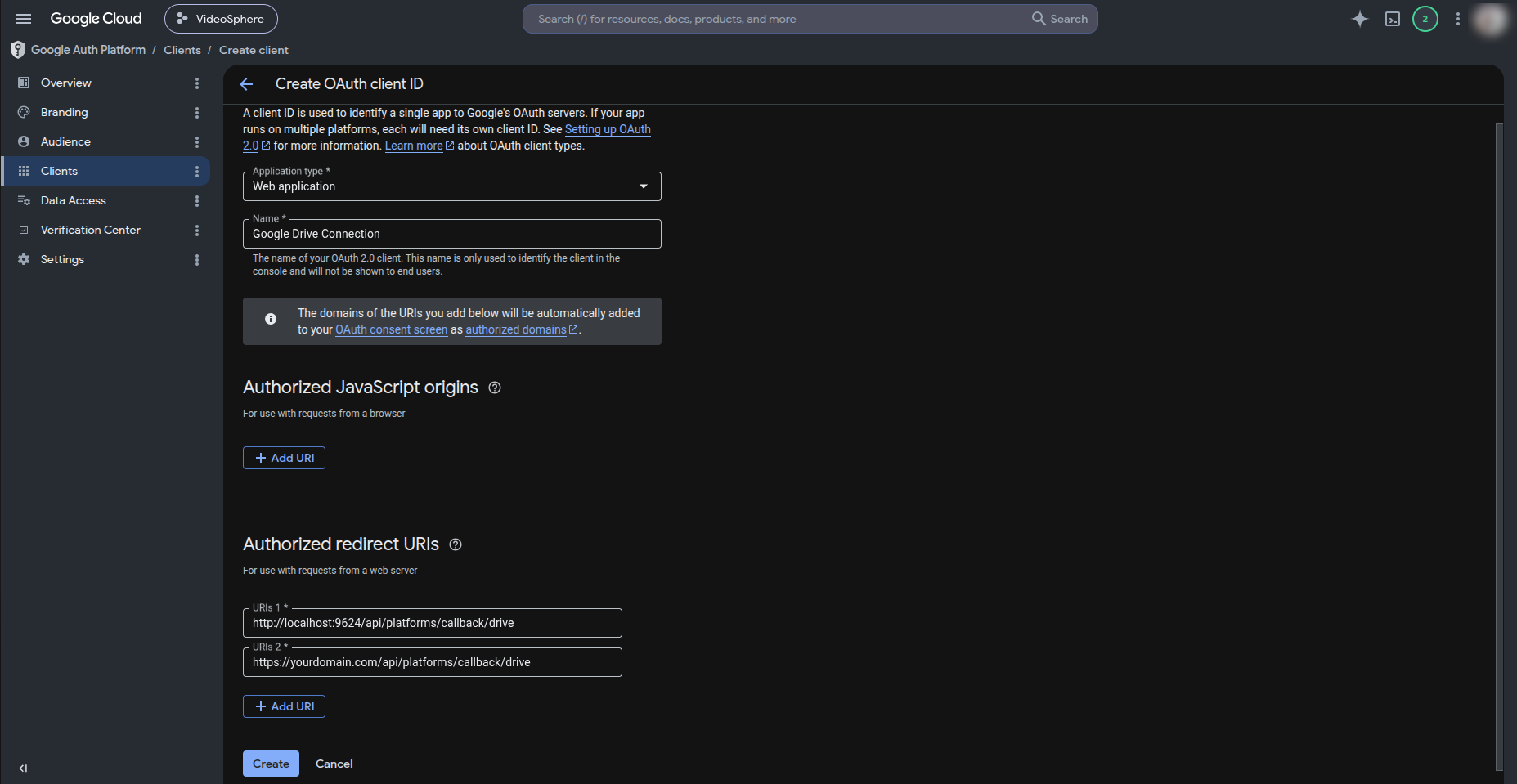

  1. Click + Create client again:
  • Name: Google Drive Connection
  • Authorized redirect URIs:
    • http://localhost:9624/api/platforms/callback/drive
    • https://your-domain.com/api/platforms/callback/drive
bash
GOOGLE_DRIVE_CLIENT_ID=your-google-drive-client-id
GOOGLE_DRIVE_CLIENT_SECRET=your-google-drive-client-secret

Google Drive Connection client

Verify in VideoSphere ​

  1. Restart the app after updating environment variables (pnpm dev locally, or redeploy the container).
  2. Sign-in: open /login and use Continue with Google (requires GOOGLE_CLIENT_*).
  3. Platform connections: sign in, go to Profile → Connections, and connect YouTube and/or Google Drive.

If OAuth fails, check the browser URL for ?error= query parameters and the app logs.

Callback URL reference ​

Replace the host with your NEXT_PUBLIC_APP_URL origin (your domain name, ie http://localhost:9624 or https://yourdomain.com).

IntegrationCallback path
Google Sign-in/api/auth/oauth/callback
YouTube/api/platforms/callback/youtube
Google Drive/api/platforms/callback/drive

Troubleshooting ​

redirect_uri_mismatch ​

The redirect URI sent by VideoSphere does not match any URI on the OAuth client. Confirm:

  • NEXT_PUBLIC_APP_URL matches the URL in the browser (including http vs https and port 9624 locally).
  • The same origin is registered on the correct client (Sign-in vs YouTube vs Drive use different clients and URIs).

access_denied or login blocked in Testing mode ​

Add the Google account under Audience → Test users, or publish the app.

YouTube connect works but uploads fail with permission errors ​

Disconnect YouTube on Profile → Connections and reconnect so Google issues a fresh token with current scopes. After adding the full youtube scope in the codebase, existing connections may need reconnecting.

OAuth works locally but not in production ​

Update all three clients with production redirect URIs, set NEXT_PUBLIC_APP_URL to the public URL, and redeploy. If you terminate TLS at a reverse proxy, the public URL must still match what users type in the browser.
