R2 Storage Module

Cloudflare R2 integration for VideoSphere. Provides utility functions for generating presigned URLs and managing temporary video storage.

Overview

Module: lib/r2.ts
Purpose: S3-compatible Cloudflare R2 client for direct browser-to-R2 uploads
Features:

• Multipart video uploads via presigned part URLs (browser uploads through POST /api/uploads/presign)
• Single-object presigned PUT URLs for draft and livestream thumbnails (15 minute expiry)
• Presigned download URLs (1 hour expiry)
• Object deletion and server-side streaming reads for distribution
• Environment validation

Environment Setup

Create an R2 account and bucket in Cloudflare Dashboard:

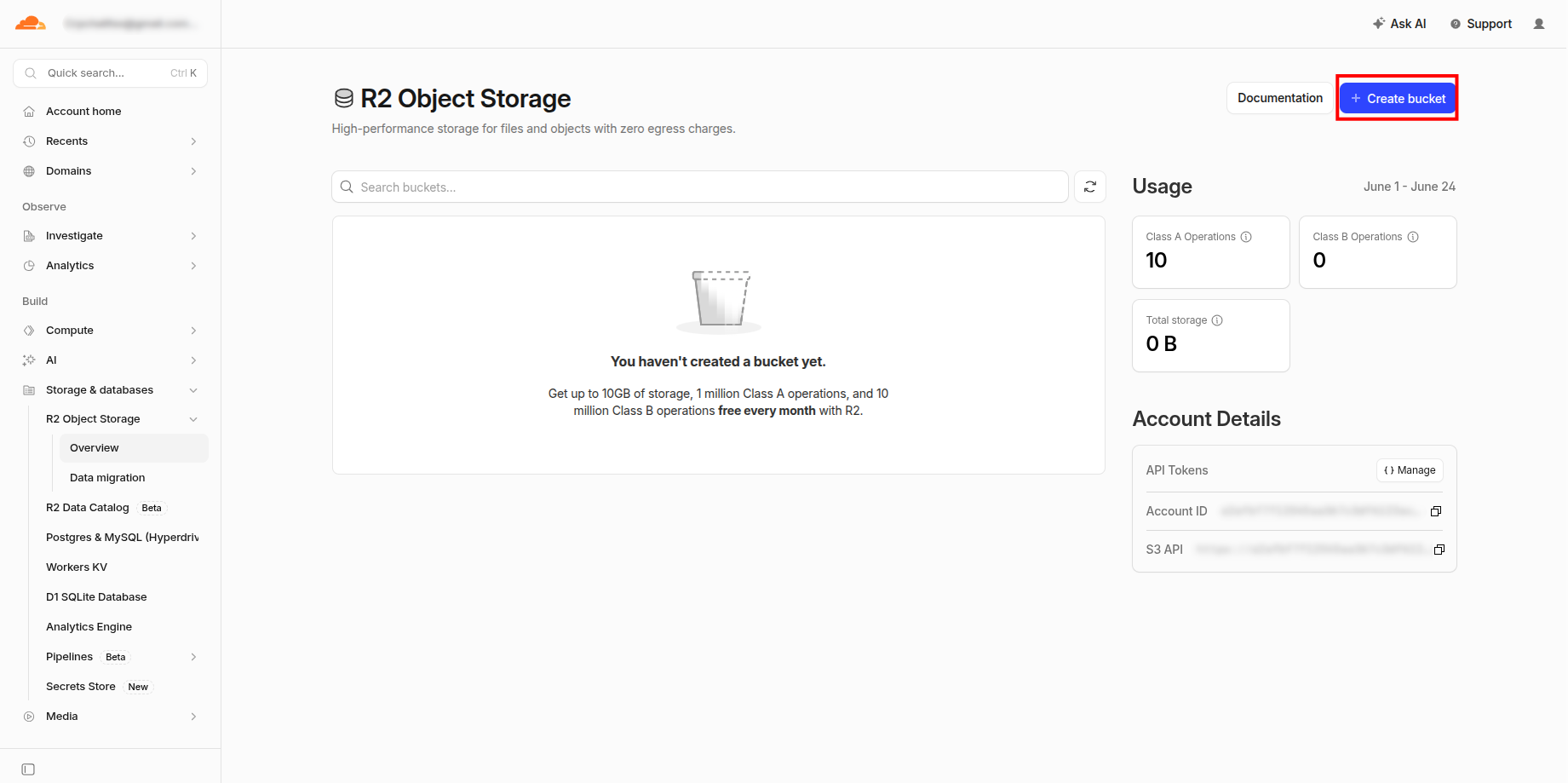

1. Cloudflare Dashboard → Storage & databases → R2 Object Storage → Overview → Create bucket

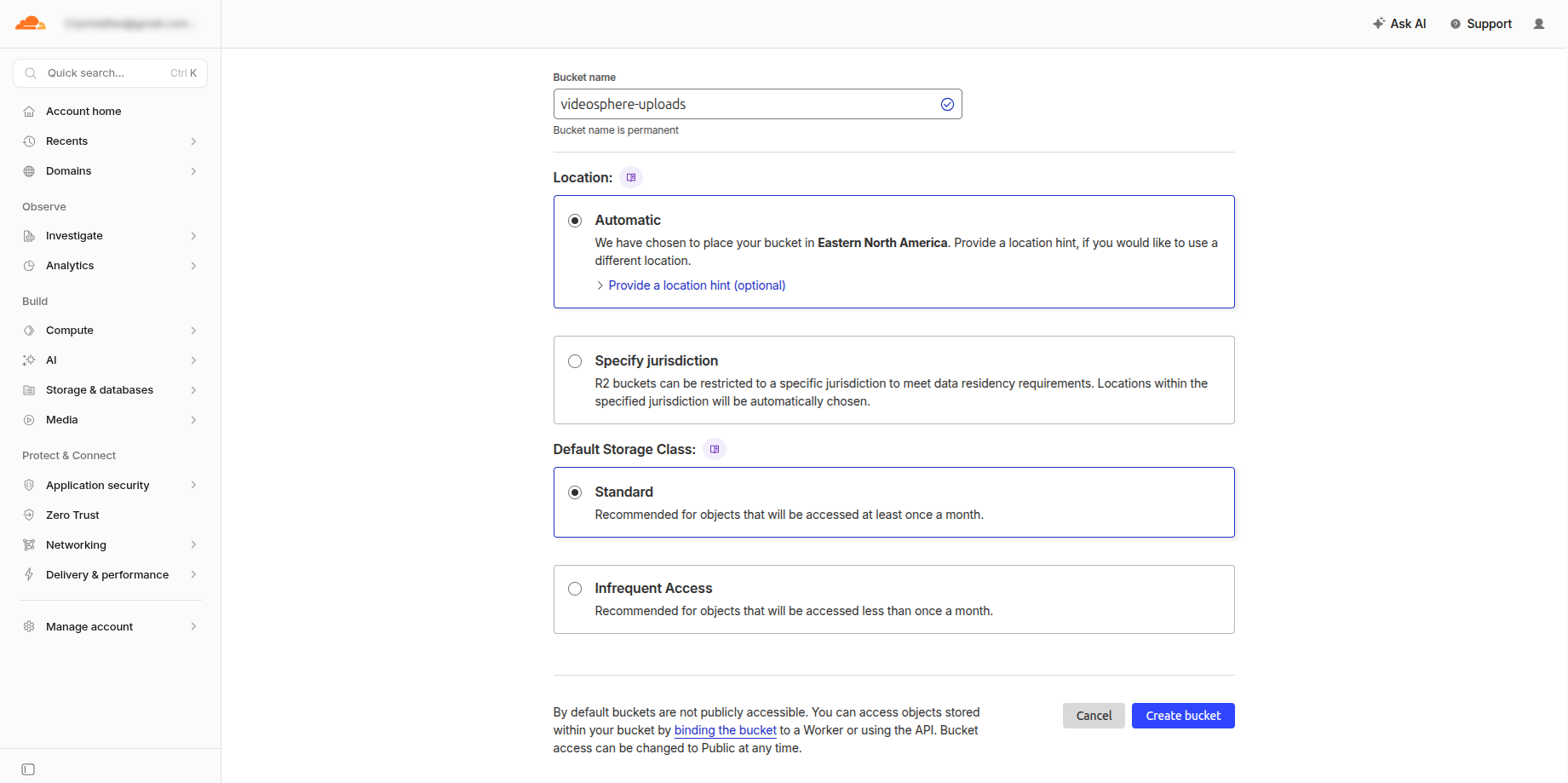

2. Call it videosphere-uploads and keep the defaults.

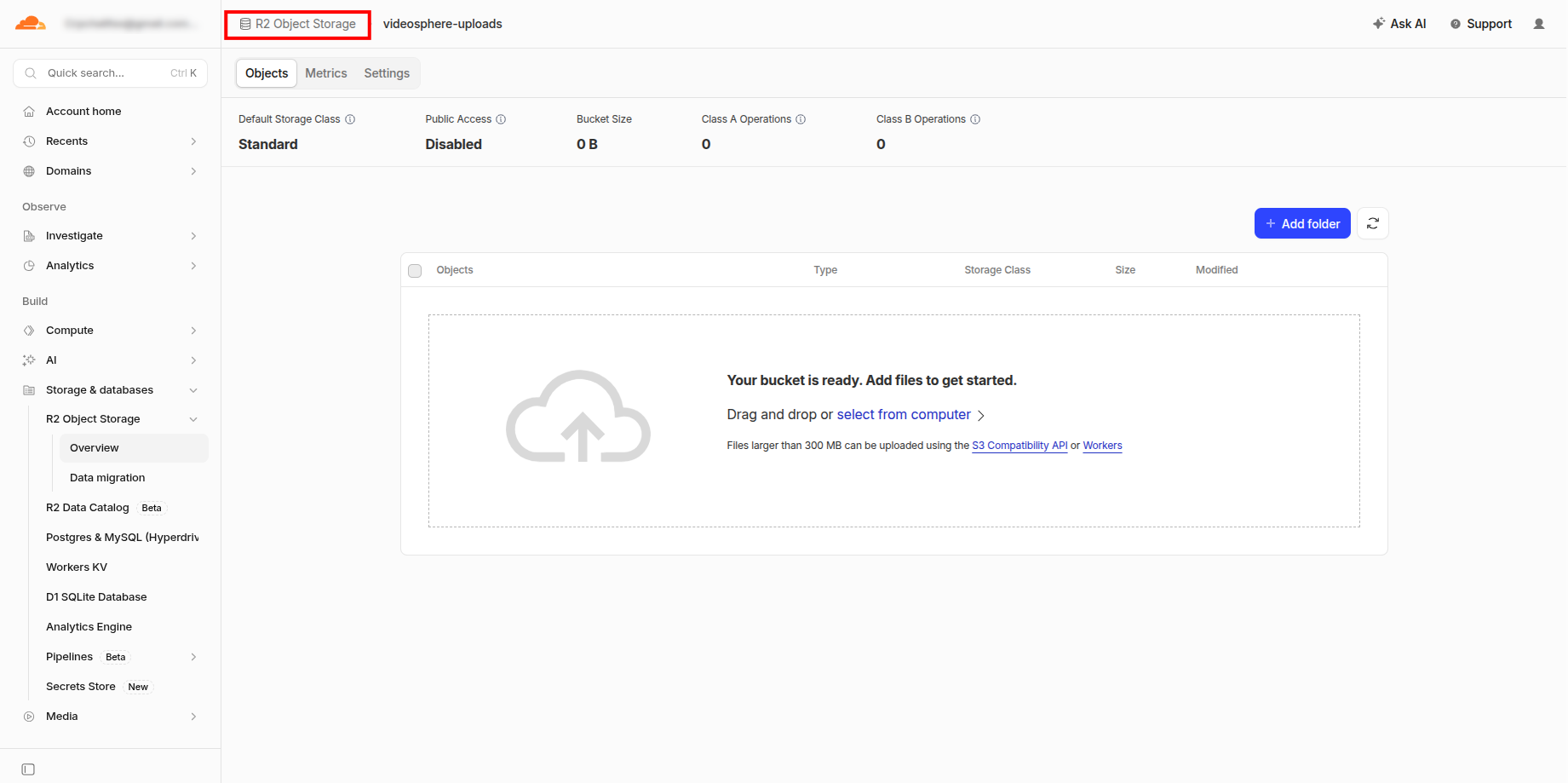

3. Click on R2 Object Storage

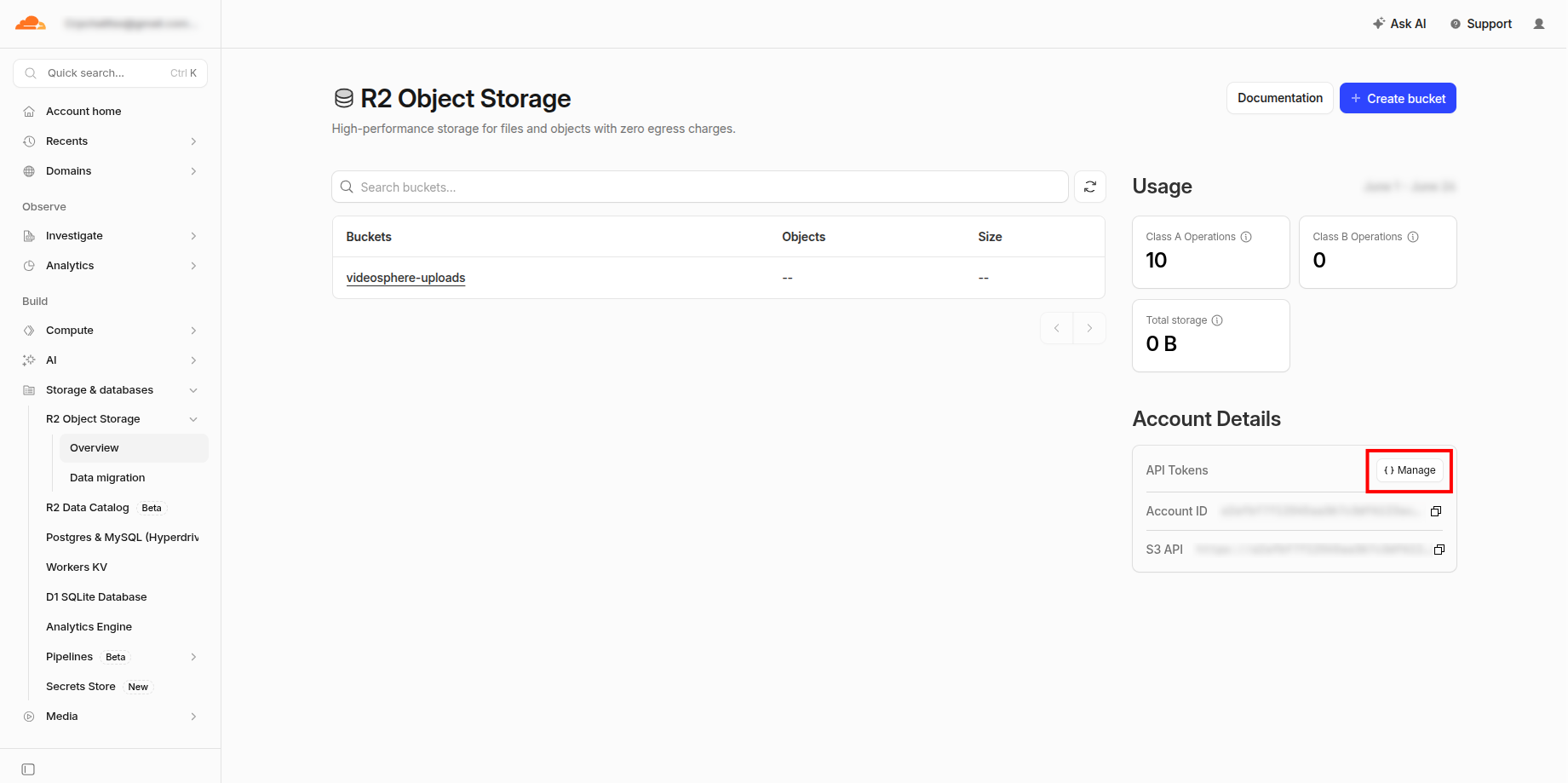

4. Account Details → Manage

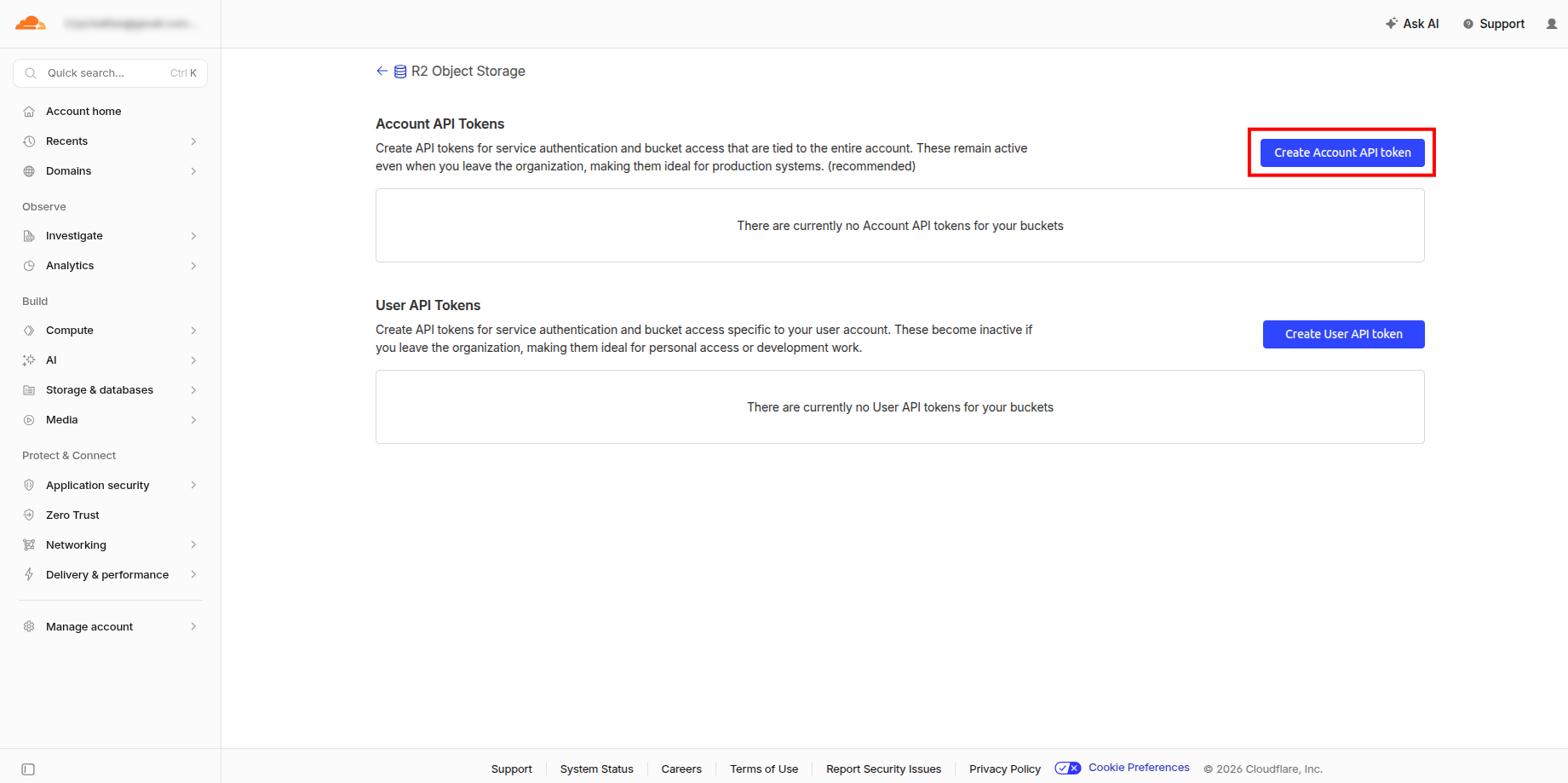

5. Account API Tokens → Create Account API token

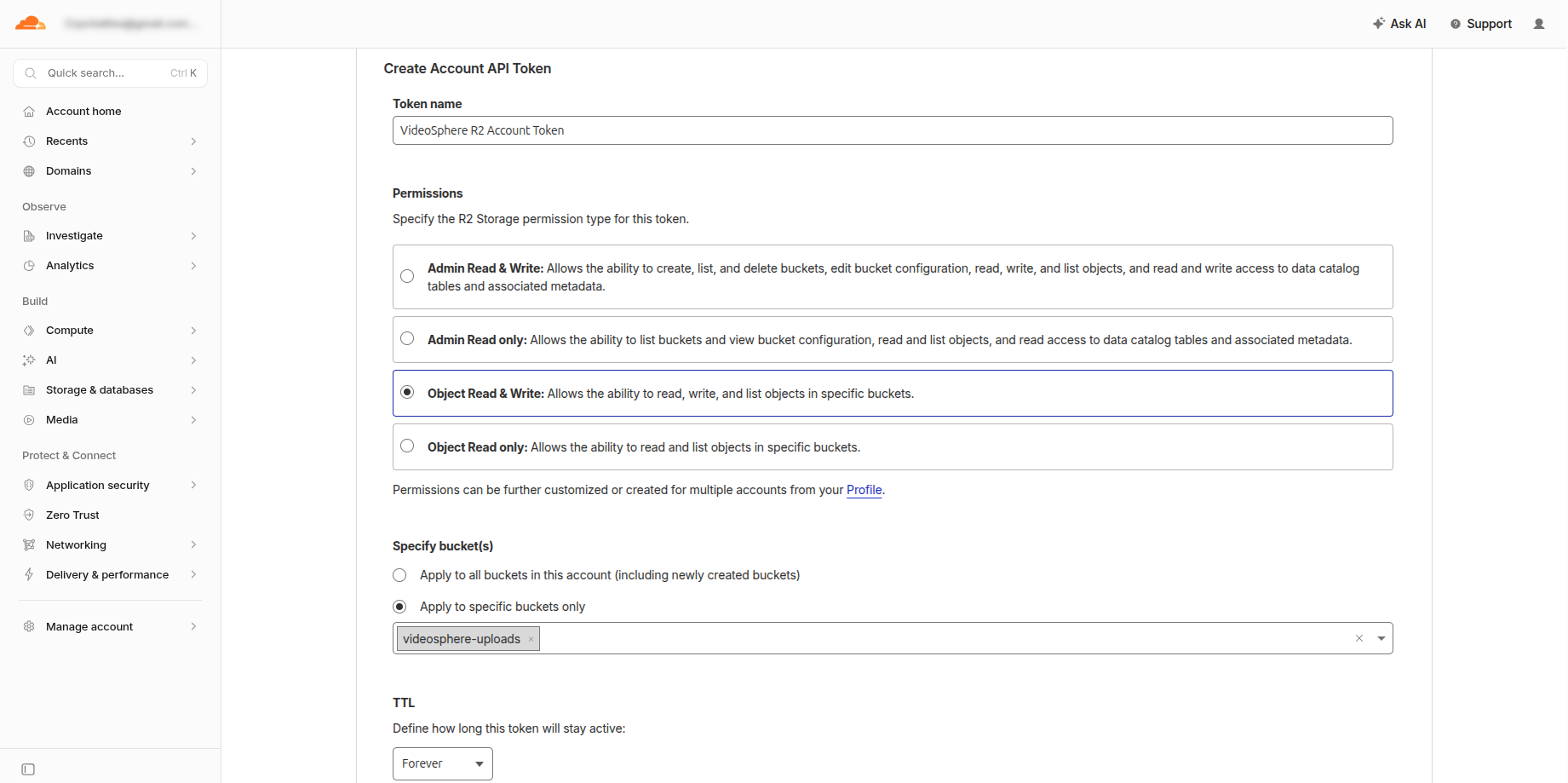

6. Create Account API Token

• Permissions: Object Read & Write
• Specify bucket(s): Apply to specific buckets only and choose videosphere-uploads

7. Add credentials to .env.local for local dev or Docker Compose (--env-file .env.local), or to your Portainer stack Environment variables (hint: Account ID is in Account Details from step 4):

   R2_ACCOUNT_ID=your-account-id
   R2_ACCESS_KEY_ID=your-access-key
   R2_SECRET_ACCESS_KEY=your-secret-key
   R2_BUCKET_NAME=videosphere-uploads

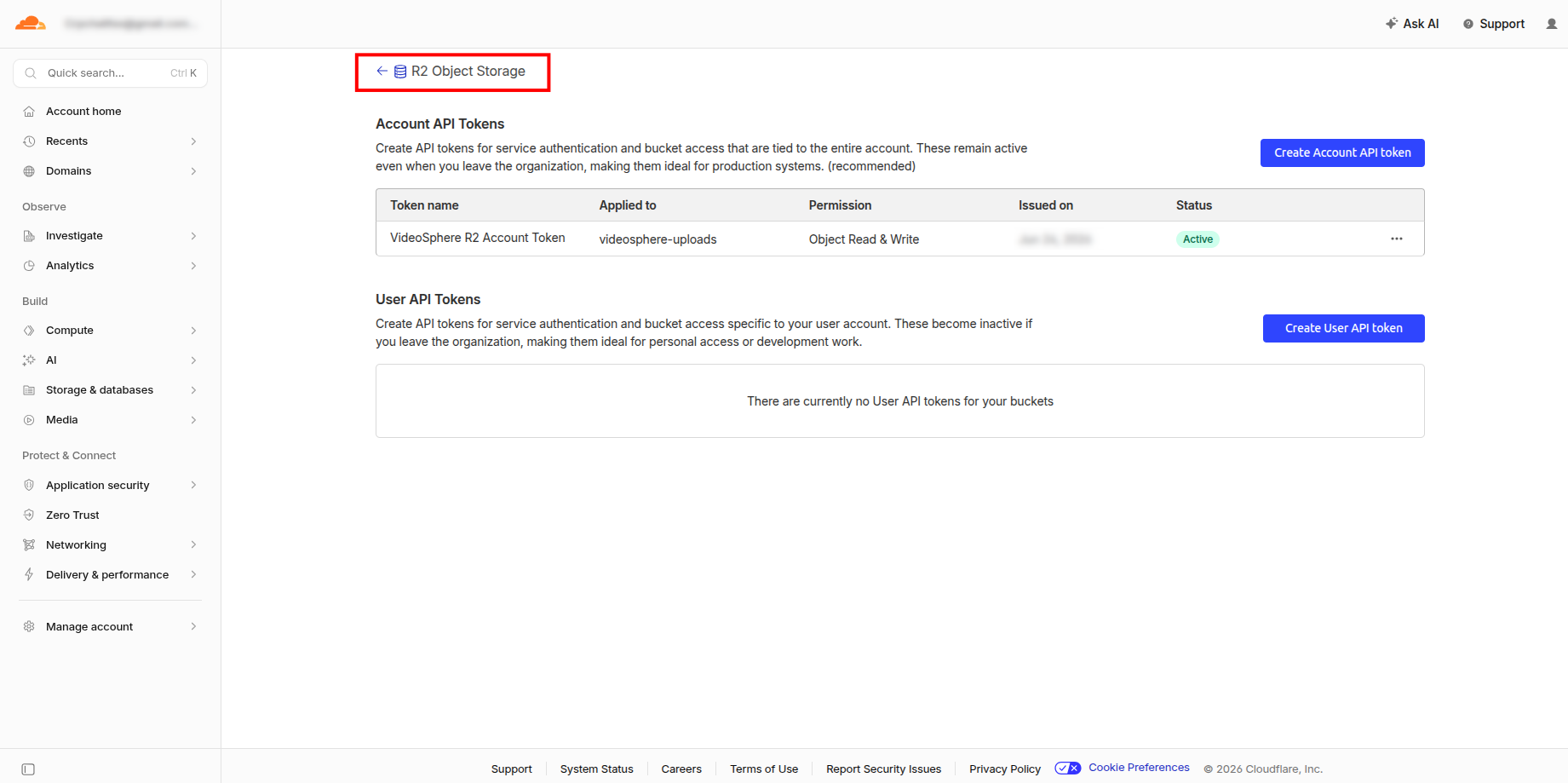

8. Click on R2 Object Storage:

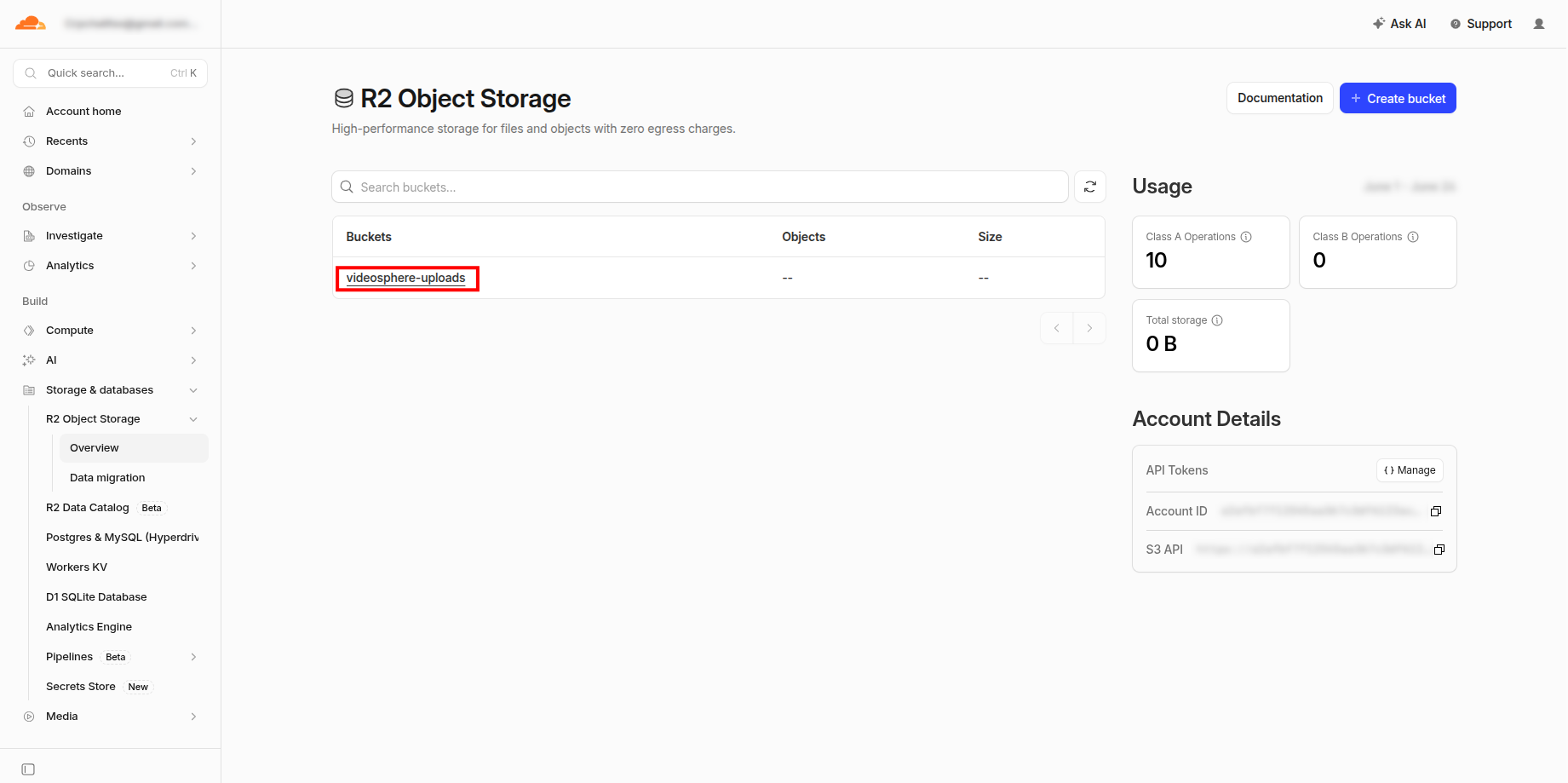

9. Click on your new bucket:

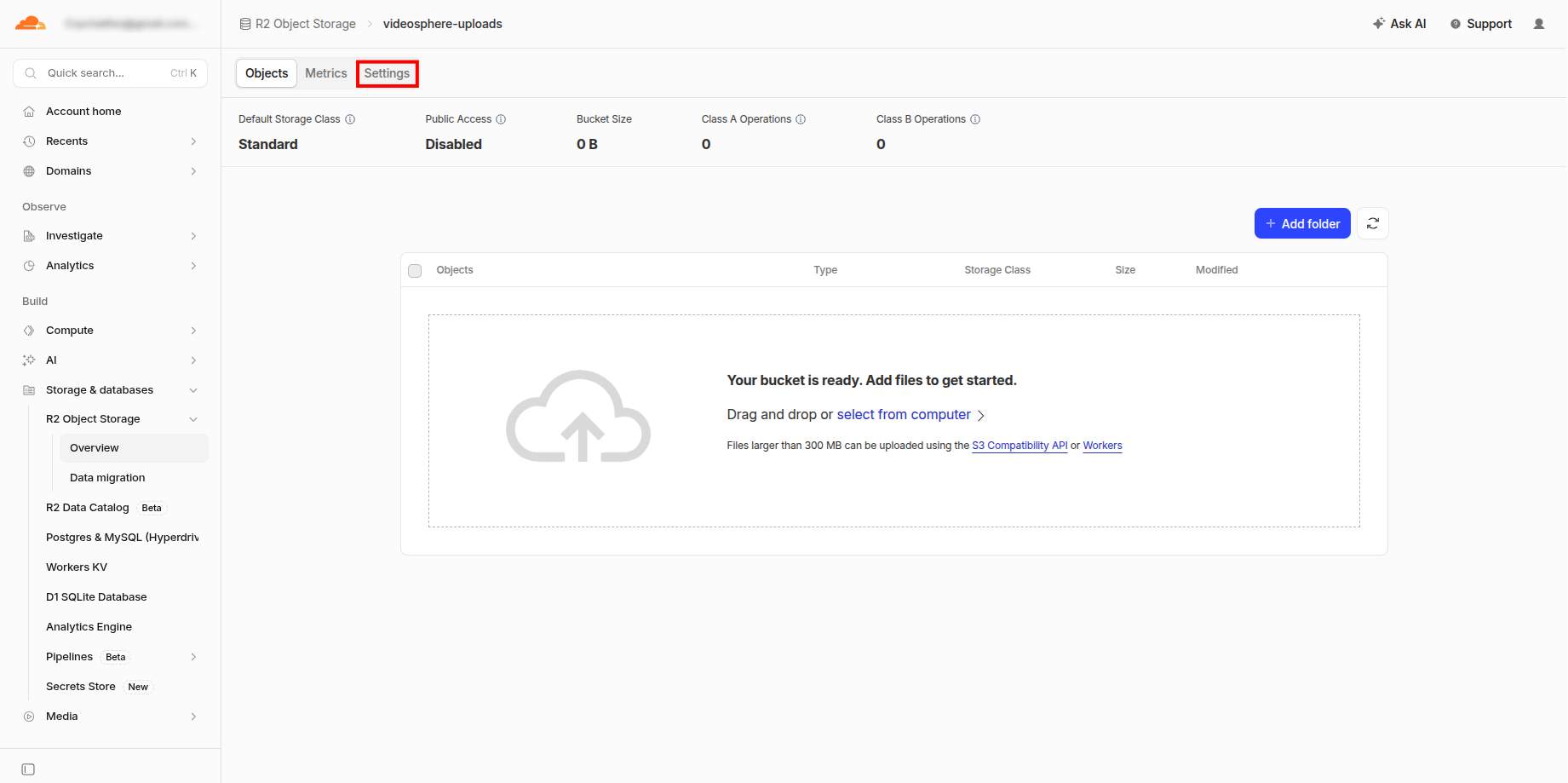

10. Go to the bucket Settings:

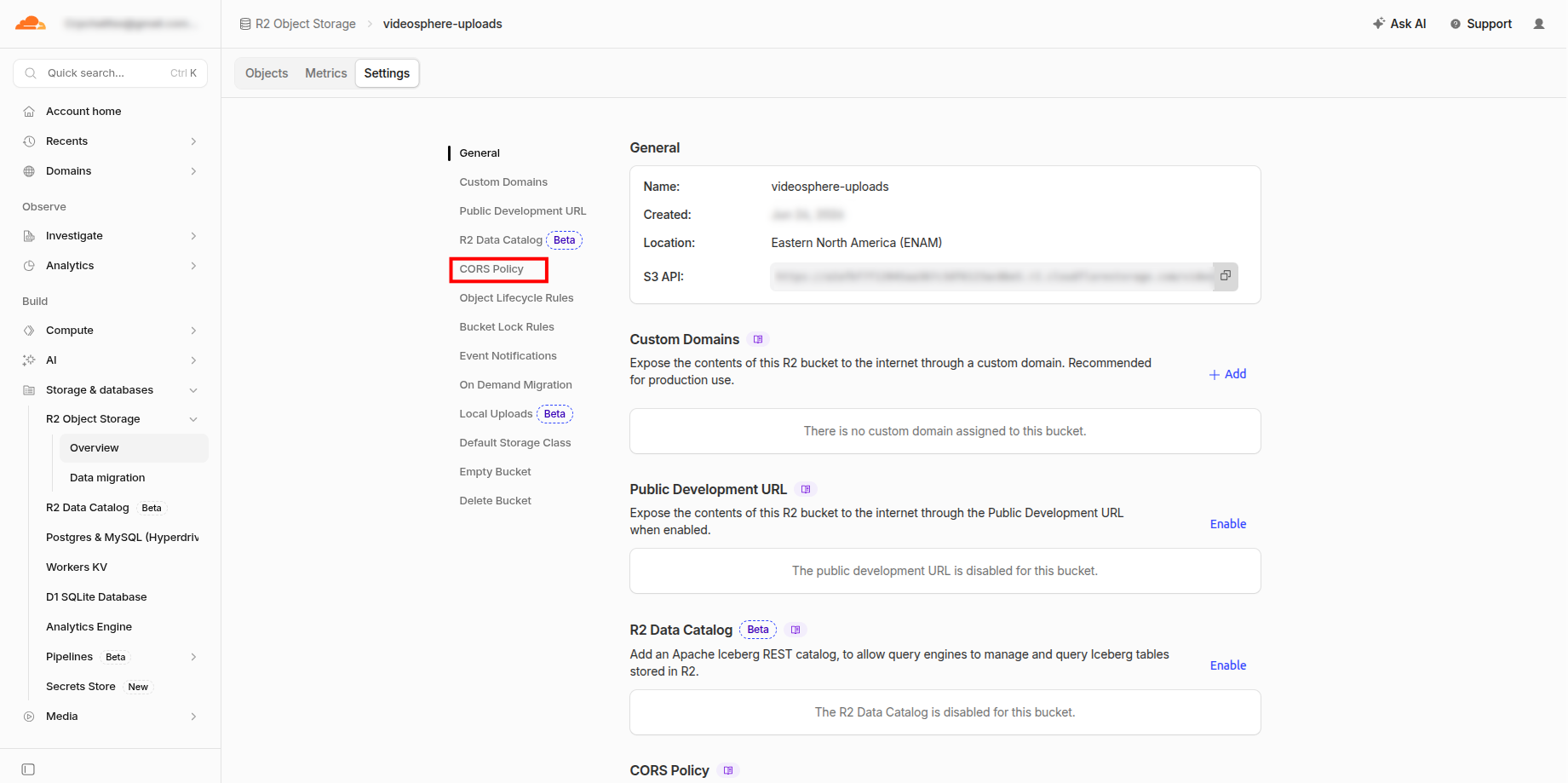

11. Go to CORS Policy:

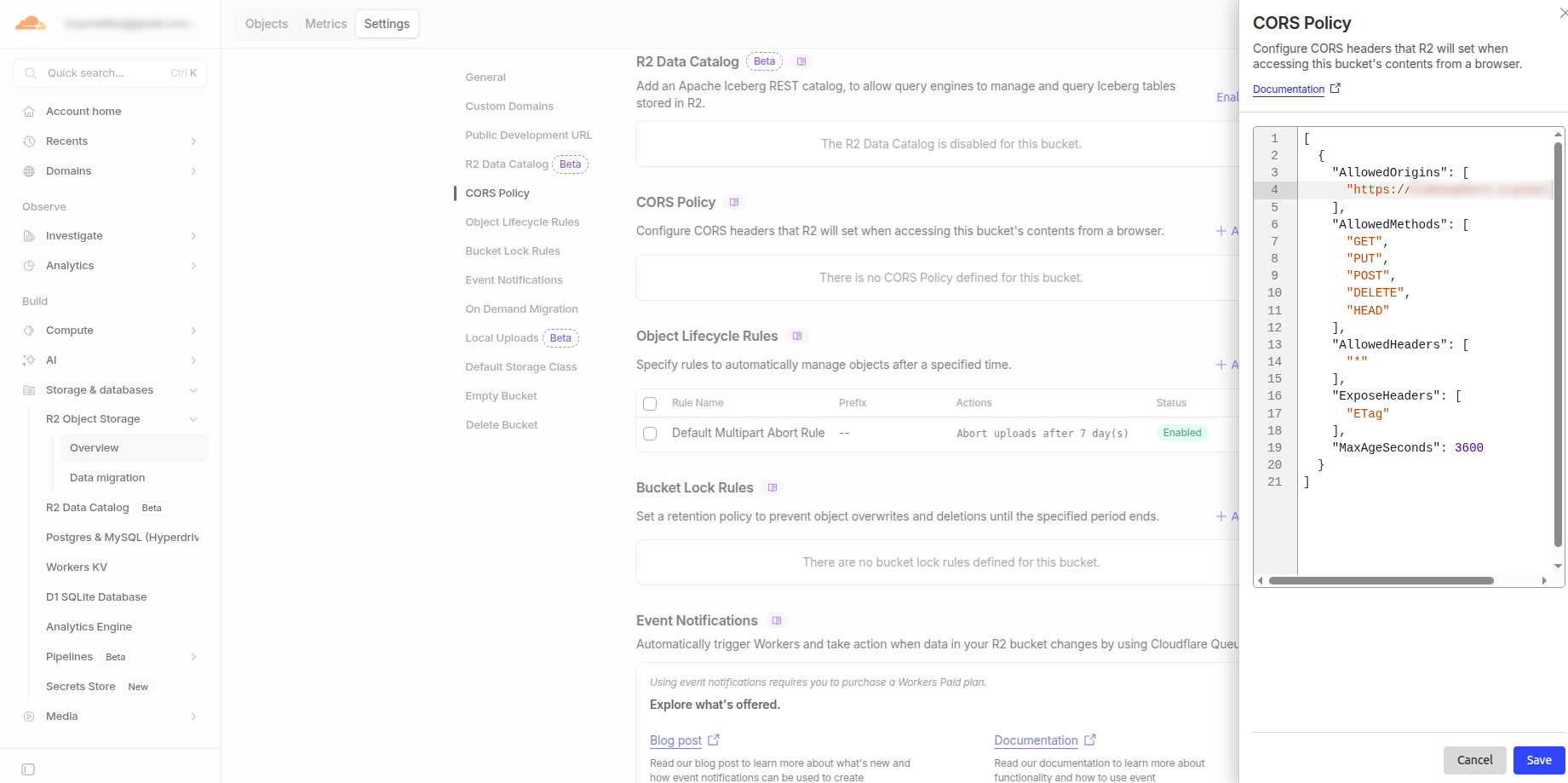

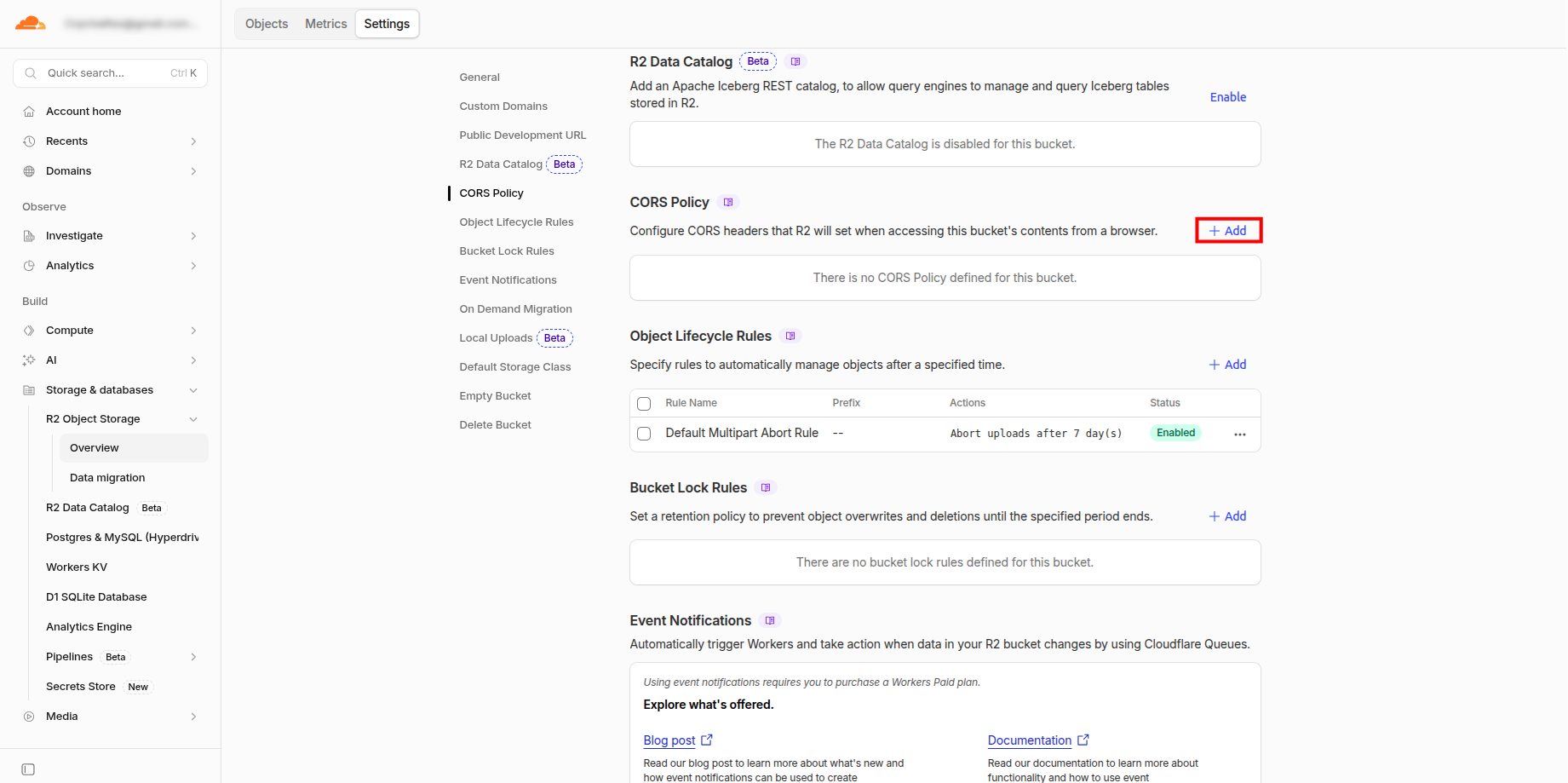

12. Add a CORS Policy:

13. Copy and Paste the following (change the domain):

    [
      {
        "AllowedOrigins": [
          "https://mydomain.com"
        ],
        "AllowedMethods": [
          "GET",
          "PUT",
          "POST",
          "DELETE",
          "HEAD"
        ],
        "AllowedHeaders": [
          "*"
        ],
        "ExposeHeaders": [
          "ETag"
        ],
        "MaxAgeSeconds": 3600
      }
    ]

    If you need multiple origins (for example local and production), add each to AllowedOrigins:

    "AllowedOrigins": [
      "http://localhost:9624",
      "http://192.168.1.38:9624",
      "https://mydomain.com"
    ]

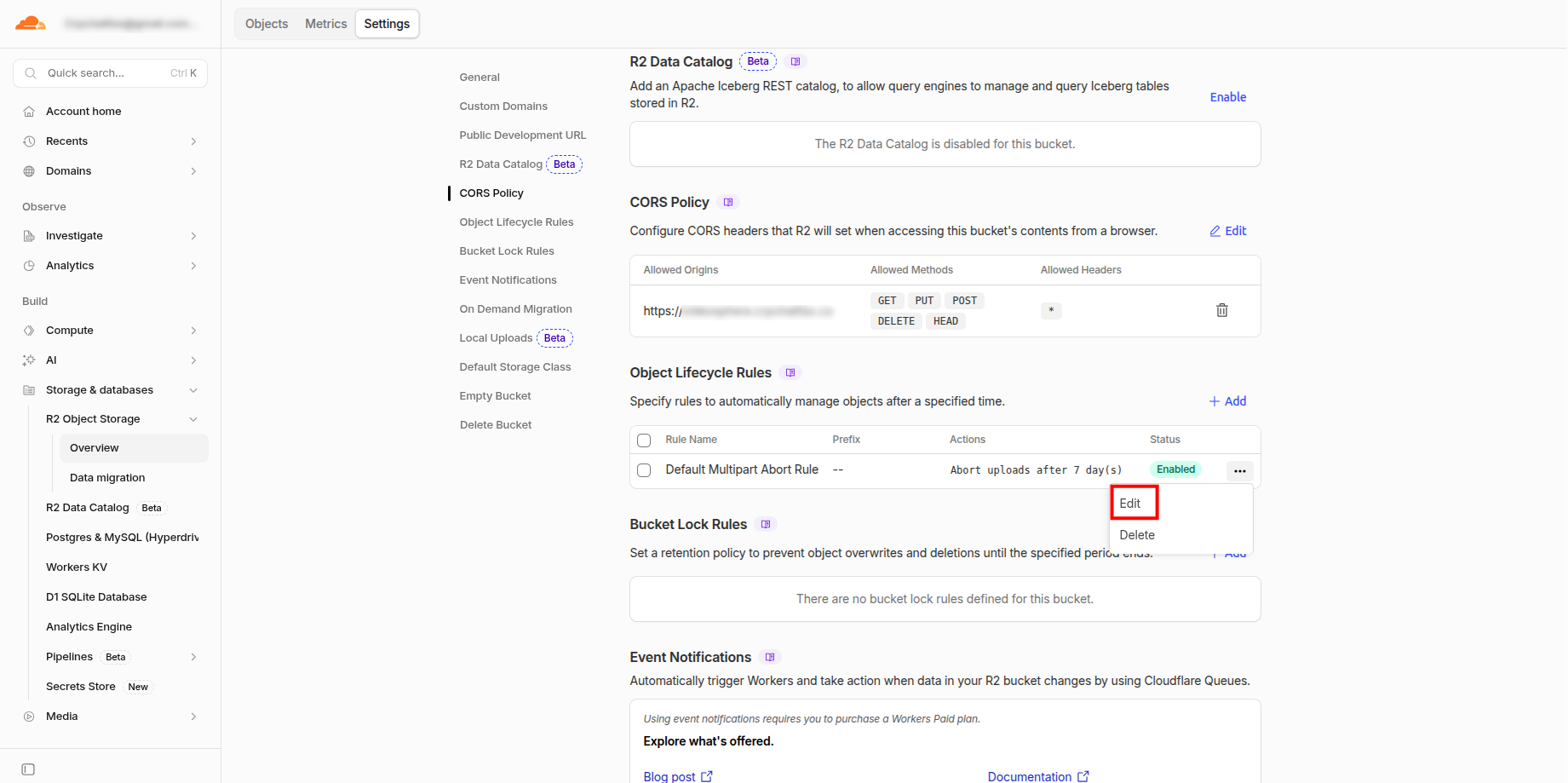

14. Edit Object Lifecycle Rules

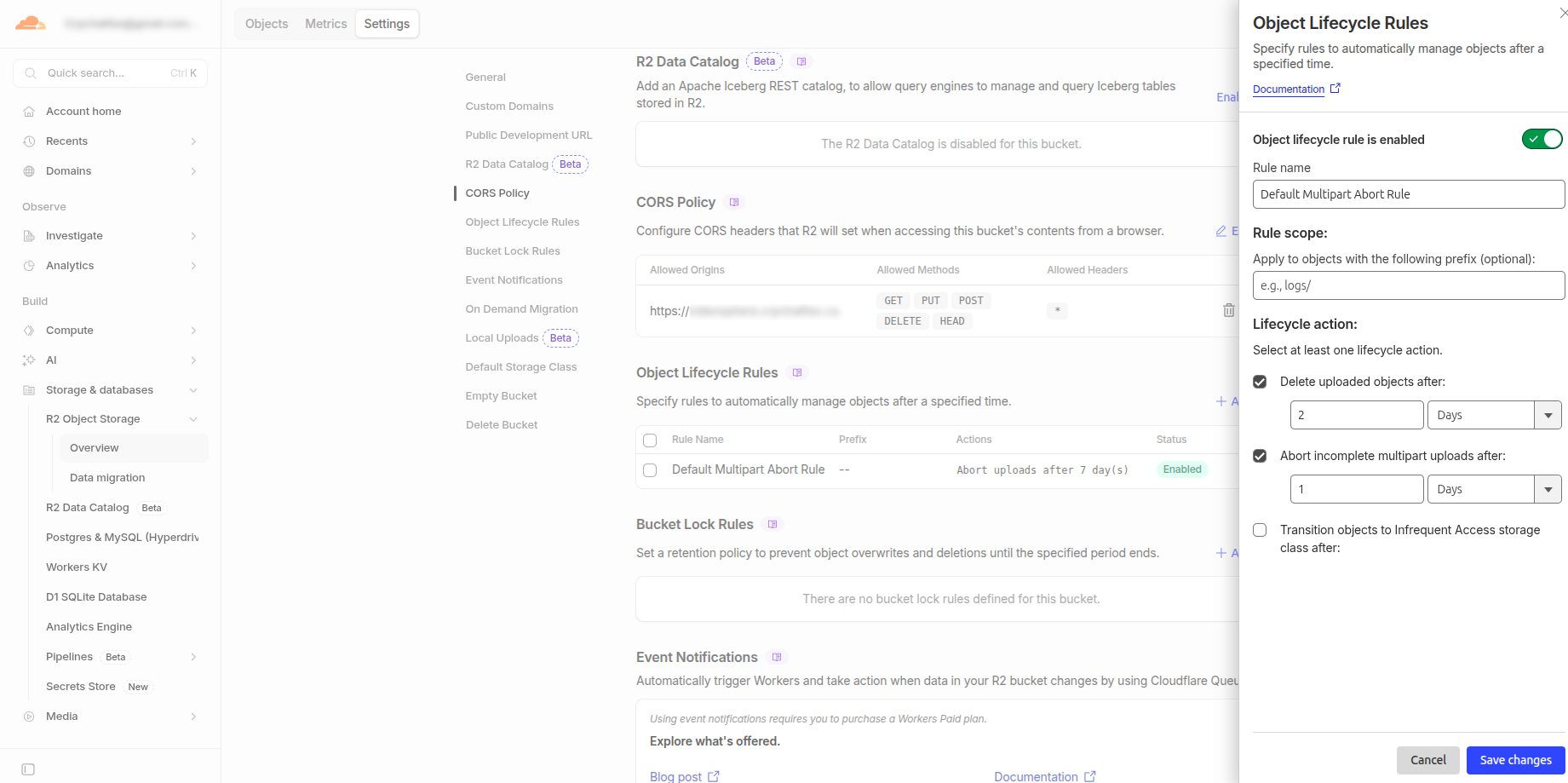

15. Object Lifecycle Rules

    Suggested rules (adjust to your retention needs):

    • Delete uploaded objects after 2 Days (safety net for abandoned staging files; successful uploads are deleted by the app after distribution)
    • Abort incomplete multipart uploads after 1 Day

API Reference

Video uploads use multipart presigned part URLs (createMultipartUpload, getPresignedUploadPartUrls, completeMultipartUpload). Thumbnail uploads use single-object presigned PUT URLs (getPresignedUploadUrl).

getPresignedUploadUrl(key, contentType, contentLength)

Generate a presigned URL for a single PUT upload (draft and livestream thumbnails).

Parameters:

• key (string): Object path in R2 (e.g., temp/draft-thumbnail-pending/user-123/draft-456/uuid.jpg)
• contentType (string): MIME type (e.g., image/jpeg)
• contentLength (number): Exact file size in bytes (validated at the API layer; not signed in the URL because browsers set Content-Length automatically)

Returns: Promise<string> — Presigned PUT URL (expires 900 seconds)

Security:

• Content-Type is part of the signature; clients cannot upload a different MIME type
• 15-minute expiry limits replay of abandoned thumbnail presigns

Example:

const url = await getPresignedUploadUrl(
  "temp/draft-thumbnail-pending/user-123/draft-456/abc.jpg",
  "image/jpeg",
  204800
);

fetch(url, {
  method: "PUT",
  body: fileBlob,
  headers: { "content-type": "image/jpeg" }
});

Multipart video uploads

Browser video uploads go through POST /api/uploads/presign, which calls:

• computeMultipartPlan(fileSize) — 32 MiB parts by default
• createMultipartUpload(key, contentType)
• getPresignedUploadPartUrls(key, uploadId, partCount, expiresInSeconds) — part URLs expire in 12 hours (slow-connection uploads)

Completion is POST /api/uploads/[jobId]/complete with part ETags. See app/api/uploads/presign/route.ts and app/api/uploads/[jobId]/complete/route.ts.

getObjectUrl(key)

Generate a presigned URL for downloading files from R2.

Parameters:

• key (string): Object path in R2

Returns: Promise<string> - Presigned GET URL (expires 3600 seconds)

Use Cases:

• Distribution engine reading video files
• Admin access to uploaded files
• Download endpoints

Example:

const url = await getObjectUrl("temp/uploads/user-123/video.mp4");

// Distribution service fetches from this URL
const response = await fetch(url);
const videoBuffer = await response.arrayBuffer();

deleteObject(key)

Delete an object from R2.

Parameters:

• key (string): Object path to delete

Returns: Promise<void>

Use Cases:

• Cleanup after successful distribution (deleteObject in the distribute pipeline)
• Remove failed or abandoned uploads (often supplemented by bucket lifecycle rules)

Example:

await deleteObject("temp/uploads/user-123/video.mp4");

getBucketName()

Get configured bucket name (for debugging/display).

Returns: string

getR2Endpoint()

Get R2 endpoint URL (for debugging/display).

Returns: string - e.g., https://account-id.r2.cloudflarestorage.com

Architecture

Presigned upload flow (video)

Client                    Next.js API                      R2
  |                            |                            |
  +-- POST /api/uploads/presign -> Authenticate, create job   |
  |                            +-- createMultipartUpload ---->|
  |                            +-- getPresignedUploadPartUrls |
  |    <--- { parts[], key } ---+                              |
  |                            |                            |
  +-- PUT part 1..N (each url) ----------------------------->|
  |                            |                            |
  +-- POST /api/uploads/[jobId]/complete ------------------>|
  |                            +-- completeMultipartUpload --->|
  |                            +-- verify size (HEAD)         |
  |                            +-- start distribution        |
  |                            +-- deleteObject (on success) |

Thumbnails use a single presigned PUT via getPresignedUploadUrl instead of multipart.

Key Design Decisions

1. AWS SDK for JavaScript

   • Standard library for S3-compatible storage
   • Works with Cloudflare R2 via endpoint configuration
   • No additional Worker infrastructure needed

2. Presigned URLs vs Direct API

   • Don't expose R2 credentials to client
   • Client uploads directly to R2 (fast, low server load)
   • Server generates time-limited, content-restricted URLs

3. Multipart staging uploads

   • Large files (up to 5 GB) upload in 32 MiB parts with long-lived part URLs
   • Server verifies the completed object with HEAD before distribution

4. Path structure: temp/uploads/{userId}/{timestamp}-{uuid}/{sanitizedFilename}

   • Organizes files by user and upload time
   • UUID avoids collisions on concurrent uploads
   • Filename sanitization strips / and \ to prevent path traversal

Error Handling

All functions throw descriptive errors:

try {
  const url = await getPresignedUploadUrl("", "image/jpeg", 1024);
} catch (error) {
  console.error(error.message);
  // → "Object key is required"
}

Common errors:

• Missing required environment variable: R2_ACCOUNT_ID (or other R2_* vars)
• Object key is required
• Content type is required
• Content length must be a positive number
• Failed to generate upload URL for key "...": [AWS error]

Testing

Run tests:

pnpm test __tests__/lib/r2.test.ts
pnpm test __tests__/lib/r2-multipart.test.ts
pnpm test __tests__/api/uploads/presign.test.ts

Tests cover:

• URL generation with correct expiry times
• Content-type signature validation
• Error handling
• Path sanitization
• Authentication checks

Security Best Practices

1. Never commit credentials — Use .env.local (gitignored) or Portainer stack secrets
2. Restrict API token permissions — Scope tokens to Object Read & Write on this bucket only
3. Use short-lived URLs — 15 minutes for single PUT thumbnails; multipart part URLs last up to 12 hours for slow uploads
4. Lock content type — Prevents uploading the wrong MIME type on presigned PUTs
5. Enable CORS on the bucket — Required for browser uploads to presigned URLs
6. Lifecycle rules — Expire orphaned temp/ objects if distribution never runs

Troubleshooting

"Unable to locate credentials"

Solution: Ensure R2_ACCESS_KEY_ID and R2_SECRET_ACCESS_KEY are set (`.env.local`, Compose env file, or Portainer stack).

"NoSuchBucket"

Solution: Verify R2_BUCKET_NAME exists and API token has access

"SignatureDoesNotMatch"

Possible causes:
- Client sent different Content-Type than presigned URL specifies
- Clock skew between server and AWS (check system time)
- Credentials are invalid or expired

"RequestTimeTooSkewed"

Solution: Sync your system clock (time difference > 15 minutes with AWS)

Related Features

• VU-04: Videos uploaded to R2 as temporary staging storage
• NF-08: Presigned URLs are time-limited (15 minutes for single PUT; multipart parts up to 12 hours)
• VU-07: Staging objects are deleted after successful distribution; bucket lifecycle rules catch orphans
• VU-01: Support uploads up to 5 GB
• VU-02: Supported formats: MP4, MOV, AVI, MKV, WebM

Dependencies

• @aws-sdk/client-s3 — S3 client for R2
• @aws-sdk/s3-request-presigner — Presigned URL generation
• @aws-sdk/lib-storage — Server-side multipart uploads (e.g. YouTube import)

References

• Cloudflare R2 Documentation
• AWS SDK v3 Presigned URLs
• S3 Presigned URLs Best Practices
